Z0109SN 5AA4 Overview

Product belongs to the Z01 series. Weight of 0.006632 oz SMD/SMT Mounting-Style SOT-223 Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 700 V Rated Repetitive Off-State Voltage VDRM; 10 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 10 mA; 8.5 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. The 1.56 V On-State-Voltage

Z0109SN 5AA4 Image

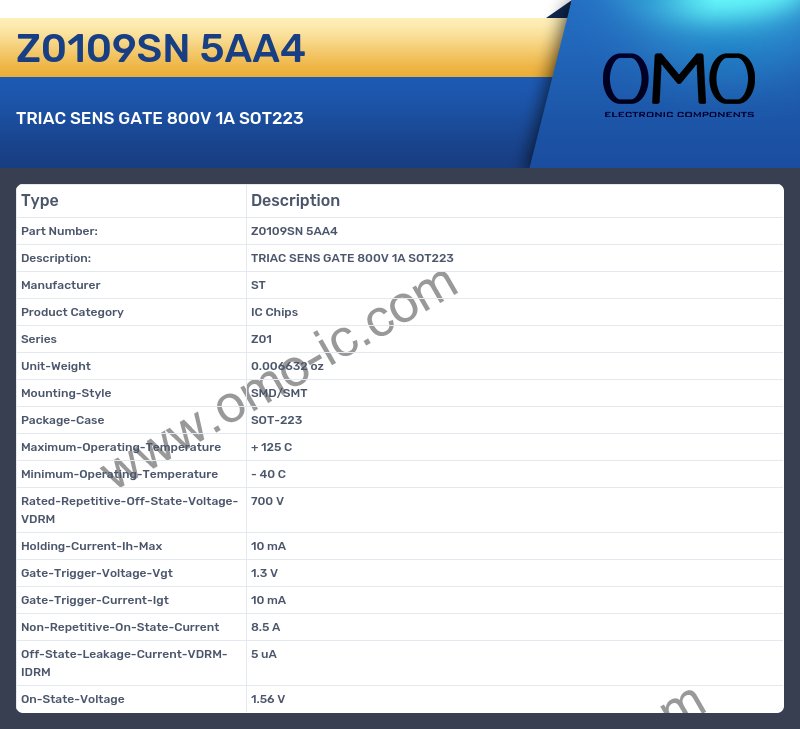

Z0109SN 5AA4 Specifications

• Manufacturer ST
• Product Category IC Chips
• Series Z01
• Unit-Weight 0.006632 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 700 V
• Holding-Current-Ih-Max 10 mA
• Gate-Trigger-Voltage-Vgt 1.3 V
• Gate-Trigger-Current-Igt 10 mA
• Non-Repetitive-On-State-Current 8.5 A
• Off-State-Leakage-Current-VDRM-IDRM 5 uA
• On-State-Voltage 1.56 V
