Z0109MA 2AL2 Overview

Product belongs to the Z01 series. Tape & Box (TB) is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-226-3, TO-92-3 (TO-226AA) Through Hole mounting type Supplier device package: TO-92 Configuration Single 10mA of Current-Hold-Ih-Max The Voltage-Off-State is 600V. Voltage-Gate-Trigger-Vgt-Max 1.3V 10mA of Current-Gate-Trigger-Igt-Max 1A is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 8A, 8.5A for 50-60Hz Itsm. Logic - Sensitive Gate Triac-Type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 600 V Rated Repetitive Off-State Voltage VDRM; 10 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 10 mA; 1 A RMS Current On-State 8.5 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. The 1.56 V On-State-Voltage

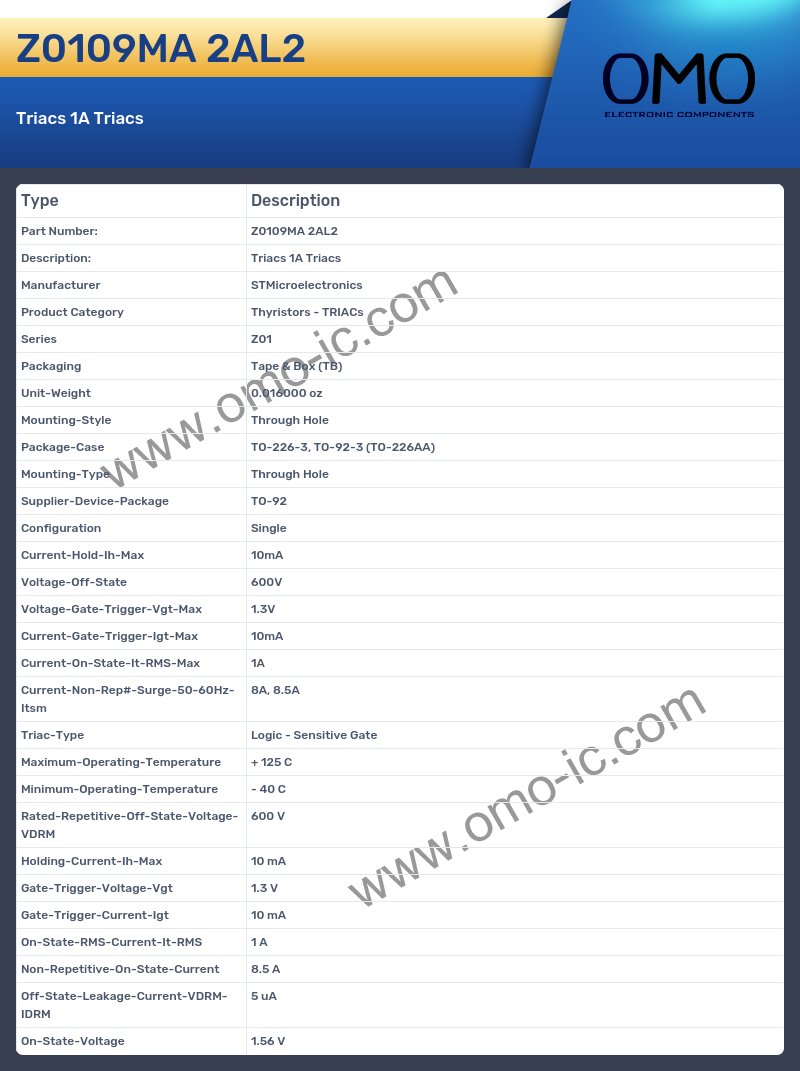

Z0109MA 2AL2 Image

Z0109MA 2AL2 Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - TRIACs
• Series Z01
• Packaging Tape & Box (TB)
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-226-3, TO-92-3 (TO-226AA)
• Mounting-Type Through Hole
• Supplier-Device-Package TO-92
• Configuration Single
• Current-Hold-Ih-Max 10mA
• Voltage-Off-State 600V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 10mA
• Current-On-State-It-RMS-Max 1A
• Current-Non-Rep#-Surge-50-60Hz-Itsm 8A, 8.5A
• Triac-Type Logic - Sensitive Gate
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 600 V
• Holding-Current-Ih-Max 10 mA
• Gate-Trigger-Voltage-Vgt 1.3 V
• Gate-Trigger-Current-Igt 10 mA
• On-State-RMS-Current-It-RMS 1 A
• Non-Repetitive-On-State-Current 8.5 A
• Off-State-Leakage-Current-VDRM-IDRM 5 uA
• On-State-Voltage 1.56 V
