X0202NUF

X0202NUF Overview

Product belongs to the X02 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 3-SMB, Flat Lead Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Supplier device package: SMBflat-3L 5mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 800mV 200μA of Current-Gate-Trigger-Igt-Max Maximum 1.45V On-State Voltage Its 800mA Current-On-State-It-AV-Max 1.25A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 22.5A, 25A for 50-60Hz Itsm. SCR-Type: Sensitive Gate; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakover Voltage 800 V 5 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 0.8 V on this product. Gate-Trigger-Current-Igt: 0.2 mA; The 0.005 mA Off-State Leakage Current in VDRM and IDRM. The Maximum-Gate-Peak-Inverse-Voltage is 8 V.

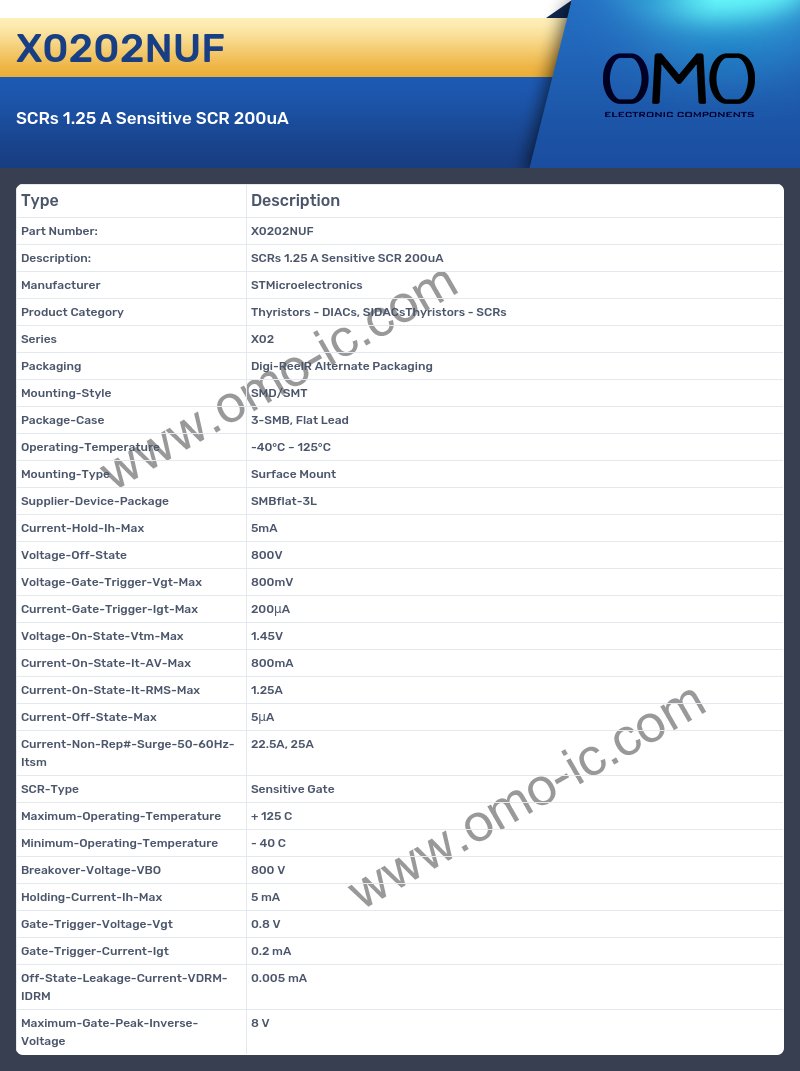

X0202NUF Image

X0202NUF Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - DIACs, SIDACsThyristors - SCRs
• Series X02
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 3-SMB, Flat Lead
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Supplier-Device-Package SMBflat-3L
• Current-Hold-Ih-Max 5mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 800mV
• Current-Gate-Trigger-Igt-Max 200μA
• Voltage-On-State-Vtm-Max 1.45V
• Current-On-State-It-AV-Max 800mA
• Current-On-State-It-RMS-Max 1.25A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 22.5A, 25A
• SCR-Type Sensitive Gate
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakover-Voltage-VBO 800 V
• Holding-Current-Ih-Max 5 mA
• Gate-Trigger-Voltage-Vgt 0.8 V
• Gate-Trigger-Current-Igt 0.2 mA
• Off-State-Leakage-Current-VDRM-IDRM 0.005 mA
• Maximum-Gate-Peak-Inverse-Voltage 8 V
