VNS1NV04P-E

VNS1NV04P-E Overview

Product belongs to the OMNIFET II, VIPower series. This product is categorized as MOSFET Gate Drivers Type: Low-Side Driver Tube is the packaging method for this product Weight of 0.004395 oz SMD/SMT Mounting-Style SO-8 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 8-SO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Single Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 250 mOhm (Max). Voltage-Load range is 36V (Max). Our product delivers a 1.7A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Yes Power-off control: 8.3 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 100 uA is 92 nA. Output current: 1.7 A This product has a 200 ns of 16 ns. This product has a 170 ns of 16 ns. The 250 mOhms for this product is 12 Ohms. Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 1000 ns. 200 ns maximum turn-on delay time

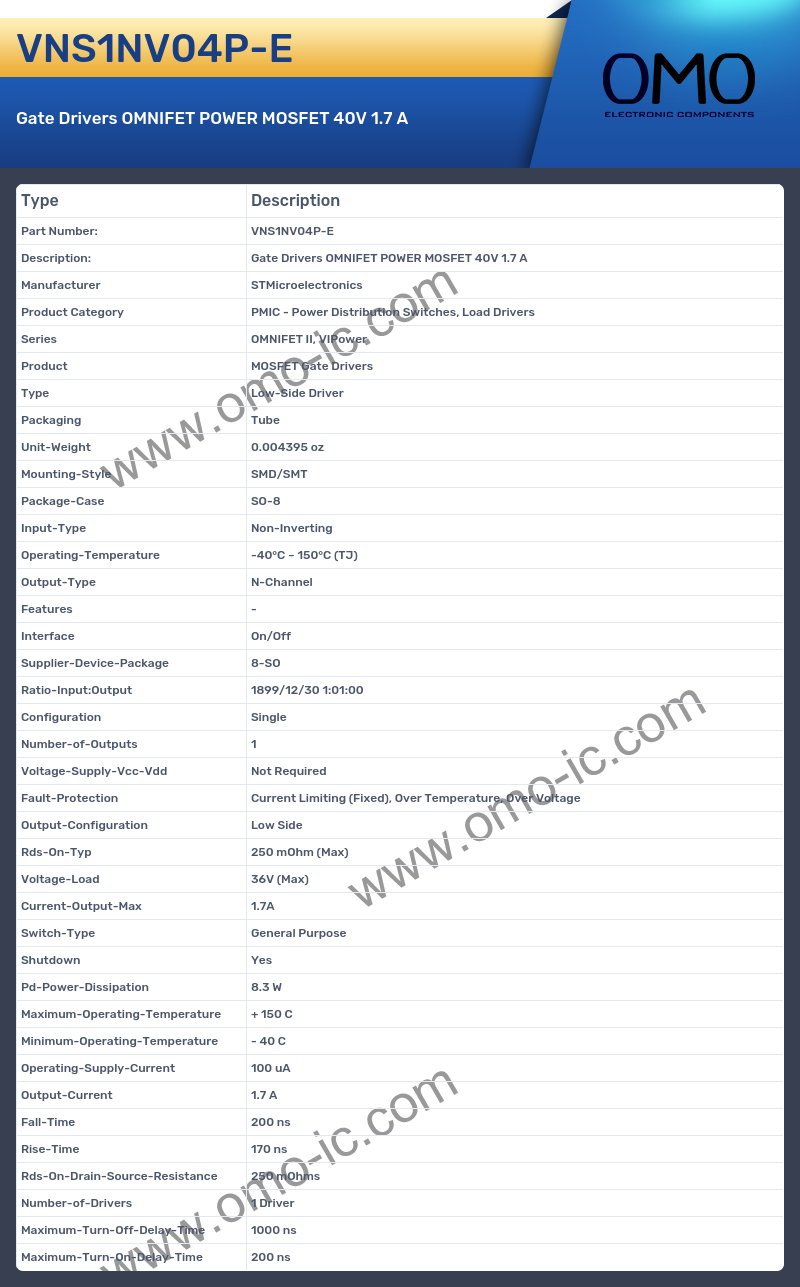

VNS1NV04P-E Image

VNS1NV04P-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET II, VIPower
• Product MOSFET Gate Drivers
• Type Low-Side Driver
• Packaging Tube
• Unit-Weight 0.004395 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package 8-SO
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Single
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 250 mOhm (Max)
• Voltage-Load 36V (Max)
• Current-Output-Max 1.7A
• Switch-Type General Purpose
• Shutdown Yes
• Pd-Power-Dissipation 8.3 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 100 uA
• Output-Current 1.7 A
• Fall-Time 200 ns
• Rise-Time 170 ns
• Rds-On-Drain-Source-Resistance 250 mOhms
• Number-of-Drivers 1 Driver
• Maximum-Turn-Off-Delay-Time 1000 ns
• Maximum-Turn-On-Delay-Time 200 ns
