UCD7230RGWR

UCD7230RGWR Overview

Product belongs to the UCD7230 series. This product is categorized as Buck Controllers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002469 oz SMD/SMT Mounting-Style VQFN-20 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 20-VQFN (5x5) Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 4.5 V ~ 15.5 V This product features 'Frequency-Switching' at Up to 2MHz for optimal performance. The Control-Features include Current Limit, Enable function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Power-off control: No The product's Isolated is non-isolated. Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Output voltage: 3.1 V 5 mA is 92 nA. Input Voltage Range: 15.5 V Switching frequency is 2 MHz This product has a 15 ns of 16 ns. This product has a 15 ns of 16 ns.

UCD7230RGWR Image

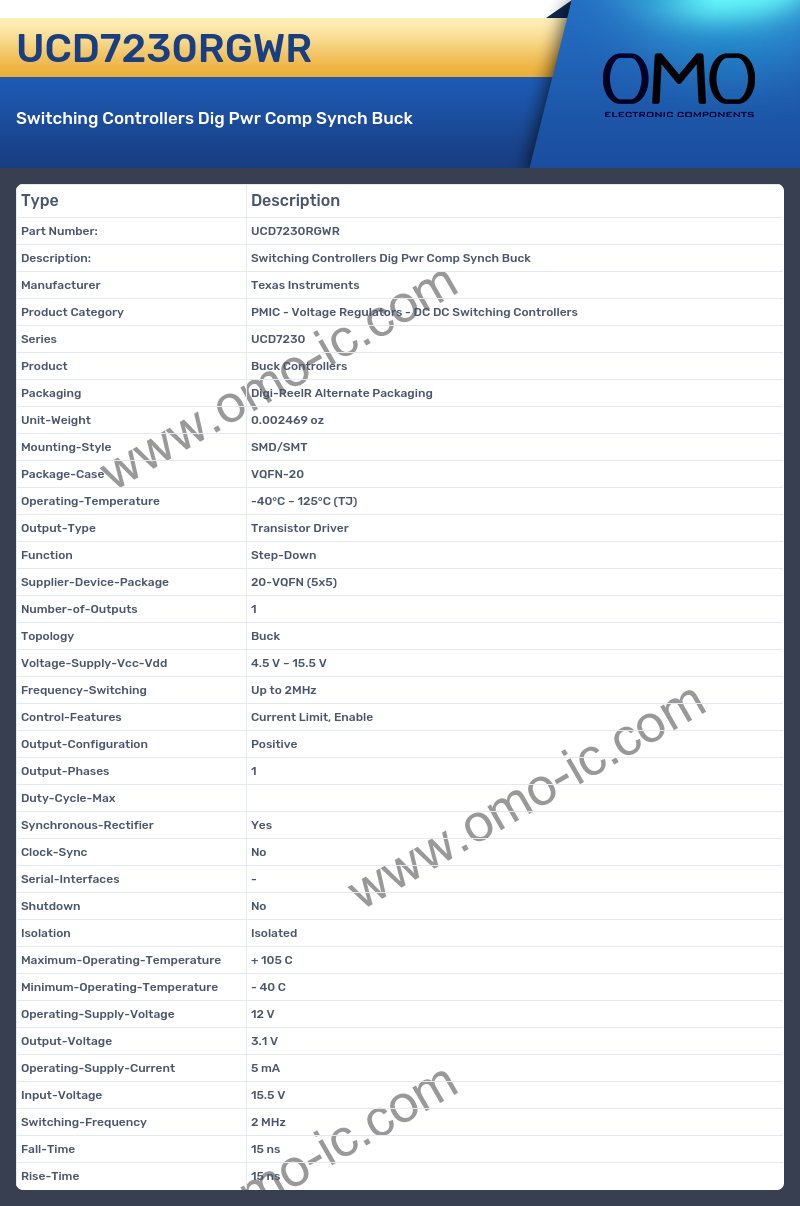

UCD7230RGWR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCD7230
• Product Buck Controllers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002469 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-20
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 20-VQFN (5x5)
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 15.5 V
• Frequency-Switching Up to 2MHz
• Control-Features Current Limit, Enable
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Shutdown No
• Isolation Isolated
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V
• Output-Voltage 3.1 V
• Operating-Supply-Current 5 mA
• Input-Voltage 15.5 V
• Switching-Frequency 2 MHz
• Fall-Time 15 ns
• Rise-Time 15 ns
