| Mfr. #: | UCC38C42D |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | Switching Controllers BiCMOS Low-Power Current Mode |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | UCC38C42D Scheda dati |
Product belongs to the UCC38C42 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Forward feedback Supply Voltage: 9 V ~ 18 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 18 V Output current: 200 mA Switching frequency is 1000 kHz This product has a 20 ns of 16 ns. This product has a 25 ns of 16 ns. Maximum duty cycle of 100 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

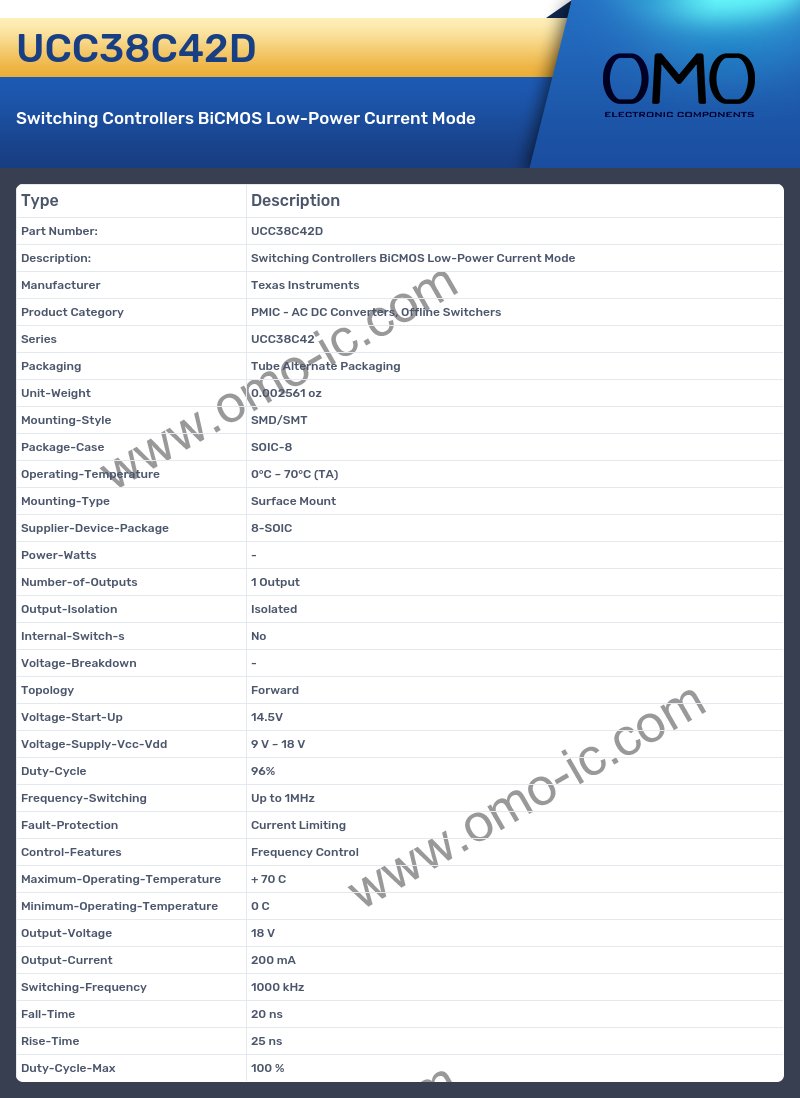

UCC38C42D Specifications
