UCC38C41DGK Overview

Product belongs to the UCC38C41 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.000917 oz SMD/SMT Mounting-Style VSSOP-8 Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 8-VSSOP Number-of-Outputs: 1 Topology: Buck, Boost, Flyback, Forward Converter feedback Supply Voltage: 6.6 V ~ 18 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 50 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 18 V Output current: 200 mA Switching frequency is 1000 kHz This product has a 20 ns of 16 ns. This product has a 25 ns of 16 ns.

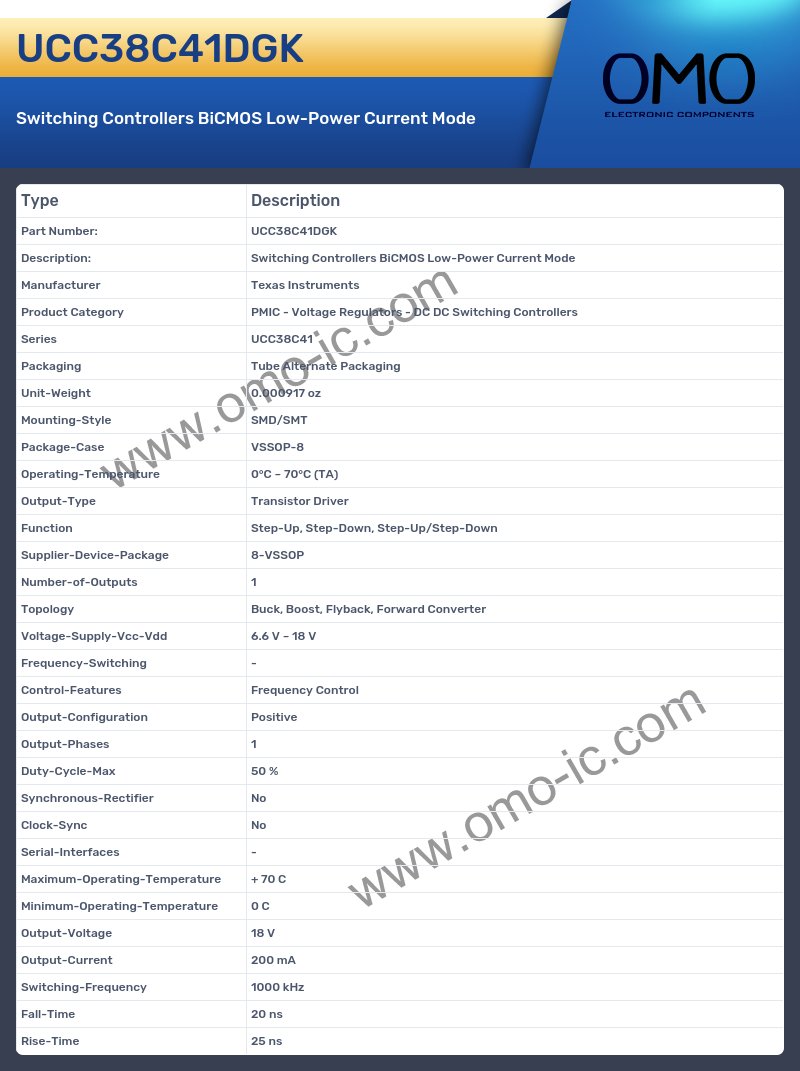

UCC38C41DGK Image

UCC38C41DGK Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC38C41
• Packaging Tube Alternate Packaging
• Unit-Weight 0.000917 oz
• Mounting-Style SMD/SMT
• Package-Case VSSOP-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 8-VSSOP
• Number-of-Outputs 1
• Topology Buck, Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 6.6 V ~ 18 V
• Frequency-Switching -
• Control-Features Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 50 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 18 V
• Output-Current 200 mA
• Switching-Frequency 1000 kHz
• Fall-Time 20 ns
• Rise-Time 25 ns
