UCC381DPTR-ADJ

UCC381DPTR-ADJ Overview

Product belongs to the UCC381-ADJ series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SOIC 1.85 V ~ 9 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.22 V ~ 8.85 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 1.22 V to 8.85 V Maximum Input Voltage: 9 V Output current: 1 A The product's + 1.85 V is 5.1 V. Load regulation is 5 mV. The voltage regulation accuracy of this product is 2.5 %. Input bias current of 400 uA This product has a 650 uA of 7 mA, making it ideal for low-power applications. The 0.5 V at 1 A. The maximum 600 mV at 1 A is 360 mV. This product's 3 mV is 0.01 %/V.

UCC381DPTR-ADJ Image

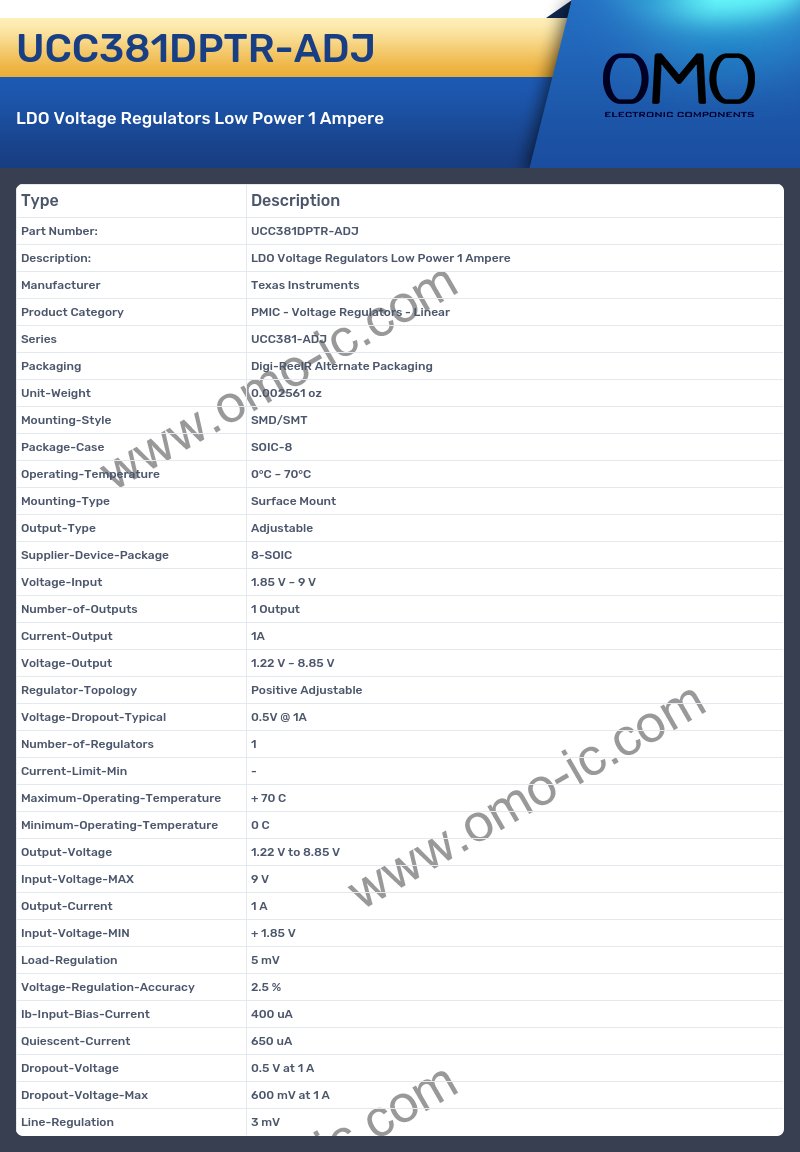

UCC381DPTR-ADJ Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series UCC381-ADJ
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 8-SOIC
• Voltage-Input 1.85 V ~ 9 V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 1.22 V ~ 8.85 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.5V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 1.22 V to 8.85 V
• Input-Voltage-MAX 9 V
• Output-Current 1 A
• Input-Voltage-MIN + 1.85 V
• Load-Regulation 5 mV
• Voltage-Regulation-Accuracy 2.5 %
• Ib-Input-Bias-Current 400 uA
• Quiescent-Current 650 uA
• Dropout-Voltage 0.5 V at 1 A
• Dropout-Voltage-Max 600 mV at 1 A
• Line-Regulation 3 mV
