UCC3809EVM

UCC3809EVM Overview

Product belongs to the - series. This product is categorized as Evaluation Boards Type: Primary/Secondary Side Controllers The DC/DC, Step Down is the Main-Purpose. 32 V ~ 75 V voltage input This product features 'Frequency-Switching' at 380kHz for optimal performance. Output voltage: 3.3V Buck regulator topology - Included item: Board. IC package type: UCC3809 Board type: Fully Populated. The product has 1, Non-Isolated outputs. Output voltage: 3.3 V Our product measures 69.9 mm x 25.4 mm in dimensions for compact and convenient use. Input Voltage Range: 48 V

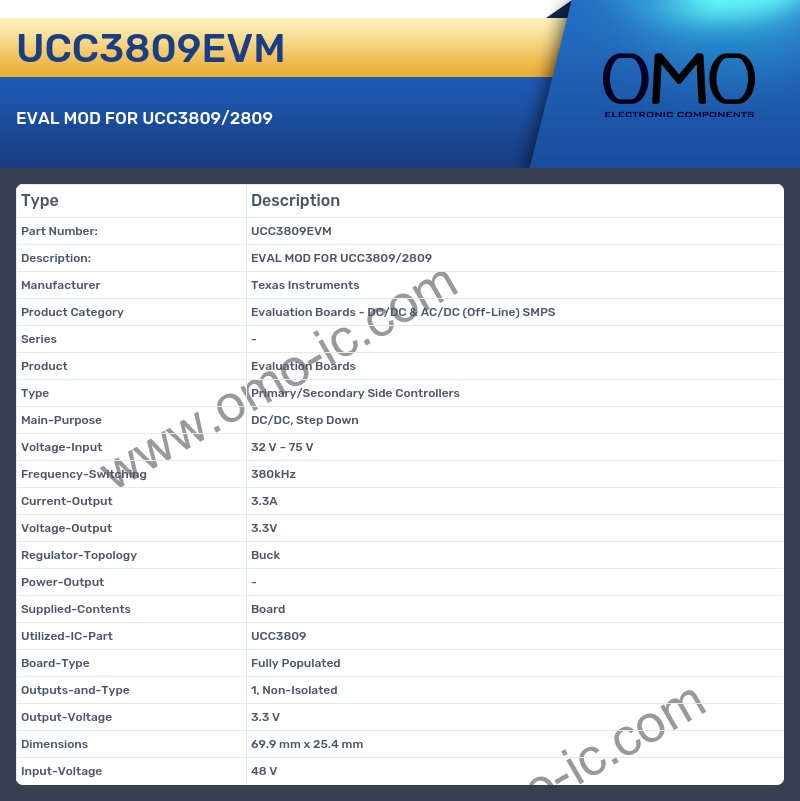

UCC3809EVM Image

UCC3809EVM Specifications

• Manufacturer Texas Instruments
• Product Category Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
• Series -
• Product Evaluation Boards
• Type Primary/Secondary Side Controllers
• Main-Purpose DC/DC, Step Down
• Voltage-Input 32 V ~ 75 V
• Frequency-Switching 380kHz
• Current-Output 3.3A
• Voltage-Output 3.3V
• Regulator-Topology Buck
• Power-Output -
• Supplied-Contents Board
• Utilized-IC-Part UCC3809
• Board-Type Fully Populated
• Outputs-and-Type 1, Non-Isolated
• Output-Voltage 3.3 V
• Dimensions 69.9 mm x 25.4 mm
• Input-Voltage 48 V
