UCC3807N-1

UCC3807N-1 Overview

Product belongs to the - series. Tube is the packaging method for this product 8-DIP (0.300", 7.62mm) Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 8-PDIP Number-of-Outputs: 1 Topology: Buck, Boost, Flyback, Forward Converter, SEPIC feedback Supply Voltage: 6.9 V ~ 13.5 V This product features 'Frequency-Switching' at 202kHz for optimal performance. The Control-Features include - function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.78 The value of No is included as a product attribute. No enabled Serial Interfaces: -

UCC3807N-1 Image

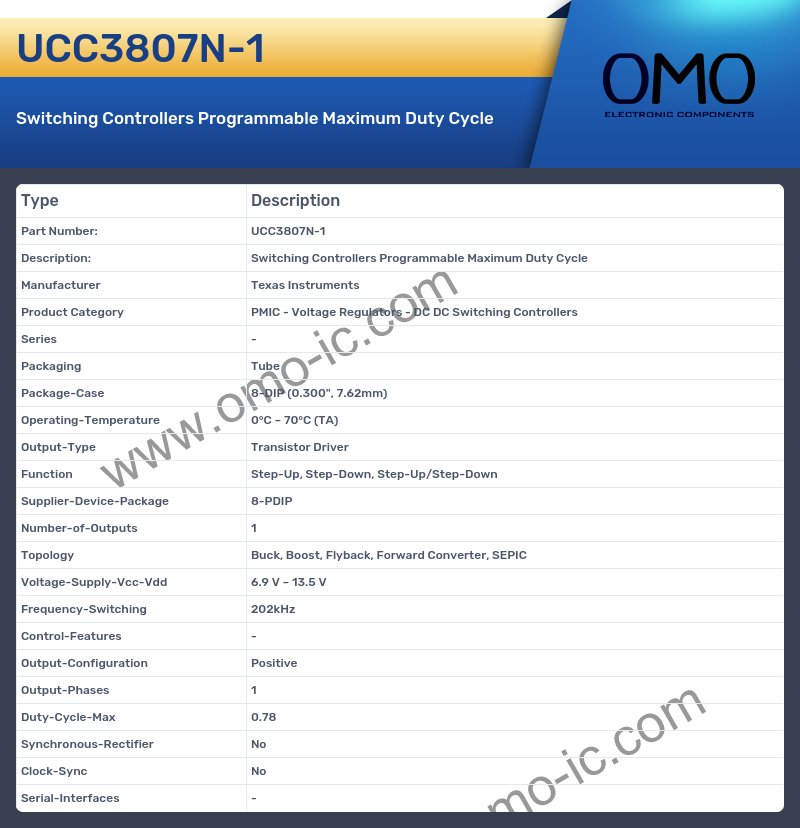

UCC3807N-1 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 8-DIP (0.300", 7.62mm)
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 8-PDIP
• Number-of-Outputs 1
• Topology Buck, Boost, Flyback, Forward Converter, SEPIC
• Voltage-Supply-Vcc-Vdd 6.9 V ~ 13.5 V
• Frequency-Switching 202kHz
• Control-Features -
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.78
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
