UCC2897PW

UCC2897PW Overview

Product belongs to the UCC2897 series. Tube is the packaging method for this product Weight of 0.002716 oz SMD/SMT Mounting-Style Number-of-Outputs: 1 Output Topology: Flyback Forward feedback Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Output current: 2000 mA Switching frequency is 1000 kHz This product has a 14 ns of 16 ns. This product has a 19 ns of 16 ns. TSSOP-20 Maximum duty cycle of 74 %

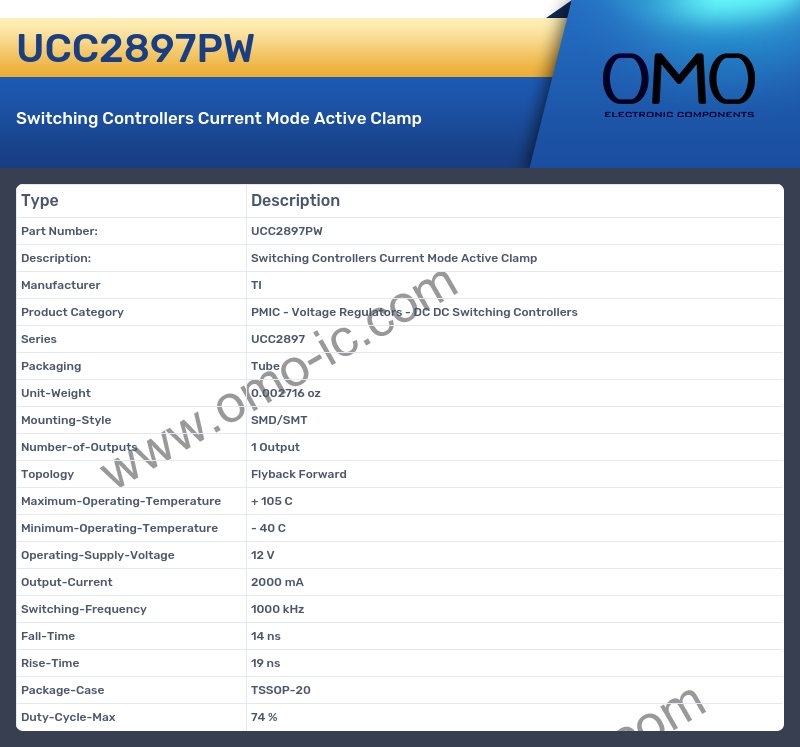

UCC2897PW Image

UCC2897PW Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC2897
• Packaging Tube
• Unit-Weight 0.002716 oz
• Mounting-Style SMD/SMT
• Number-of-Outputs 1 Output
• Topology Flyback Forward
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V
• Output-Current 2000 mA
• Switching-Frequency 1000 kHz
• Fall-Time 14 ns
• Rise-Time 19 ns
• Package-Case TSSOP-20
• Duty-Cycle-Max 74 %
