UCC2895DW

UCC2895DW Overview

Product belongs to the UCC2895 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.020071 oz SMD/SMT Mounting-Style SOIC-20 Wide Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 20-SOIC Number-of-Outputs: 4 Output Output-Isolation: Isolated This product has No. Topology: Full-Bridge feedback Supply Voltage: 10 V ~ 16.5 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include Frequency Control, Soft Start, Sync function. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 9 V to 16.5 V supply voltage for reliable performance. Output current: 100 mA Switching frequency is 1000 kHz Maximum duty cycle of 100 %

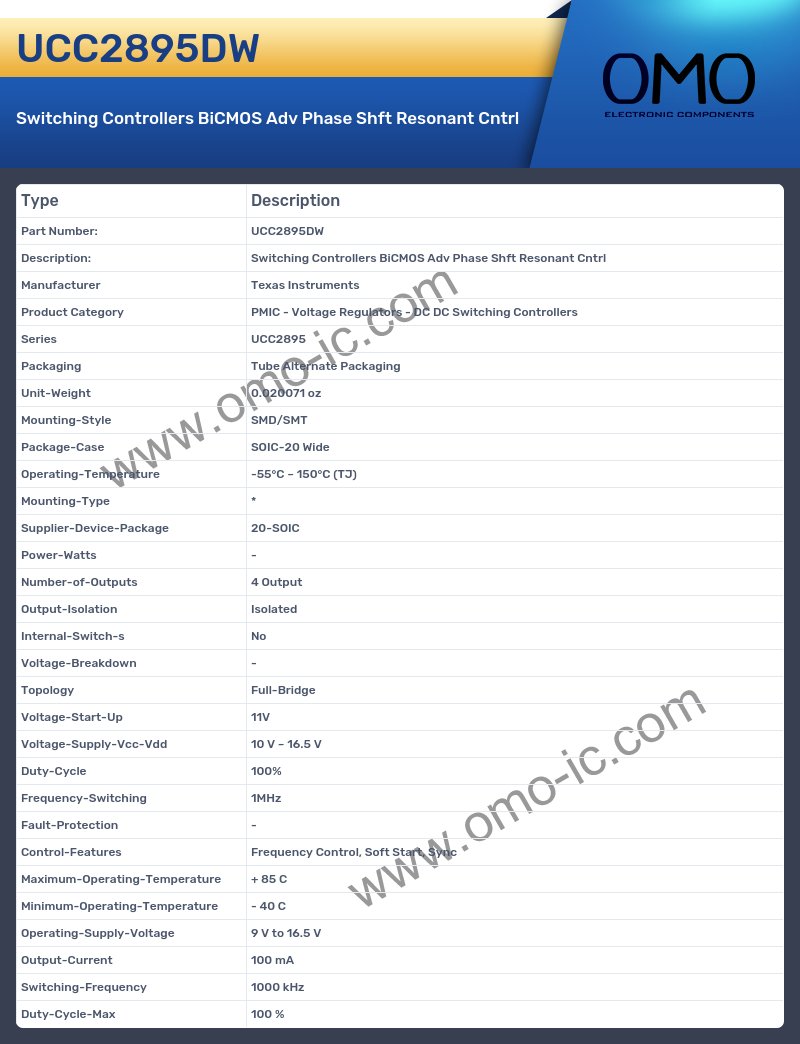

UCC2895DW Image

UCC2895DW Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC2895
• Packaging Tube Alternate Packaging
• Unit-Weight 0.020071 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20 Wide
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type *
• Supplier-Device-Package 20-SOIC
• Power-Watts -
• Number-of-Outputs 4 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Full-Bridge
• Voltage-Start-Up 11V
• Voltage-Supply-Vcc-Vdd 10 V ~ 16.5 V
• Duty-Cycle 100%
• Frequency-Switching 1MHz
• Fault-Protection -
• Control-Features Frequency Control, Soft Start, Sync
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 9 V to 16.5 V
• Output-Current 100 mA
• Switching-Frequency 1000 kHz
• Duty-Cycle-Max 100 %
