UCC28704DBVT-1

UCC28704DBVT-1 Overview

Product belongs to the UCC28704 series. This product is categorized as Flyback Controller Type: Flyback Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style Wide - 40 C to +125 C operating temperature range for diverse applications SOT23-6 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Supplier device package: SOT-23-6 Number-of-Outputs: - Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 8.5 V ~ 35 V This product features 'Frequency-Switching' at 85kHz for optimal performance. The Control-Features include - function. The product's Isolated is non-isolated. Maximum operating temperature of + 125 C Output voltage: - - is 92 nA. Output current: - Switching frequency is 85 kHz The -. Maximum duty cycle of 99 % This product requires a minimum 8.5 V of 2.95 V. This product has a maximum 35 V of 20 V.

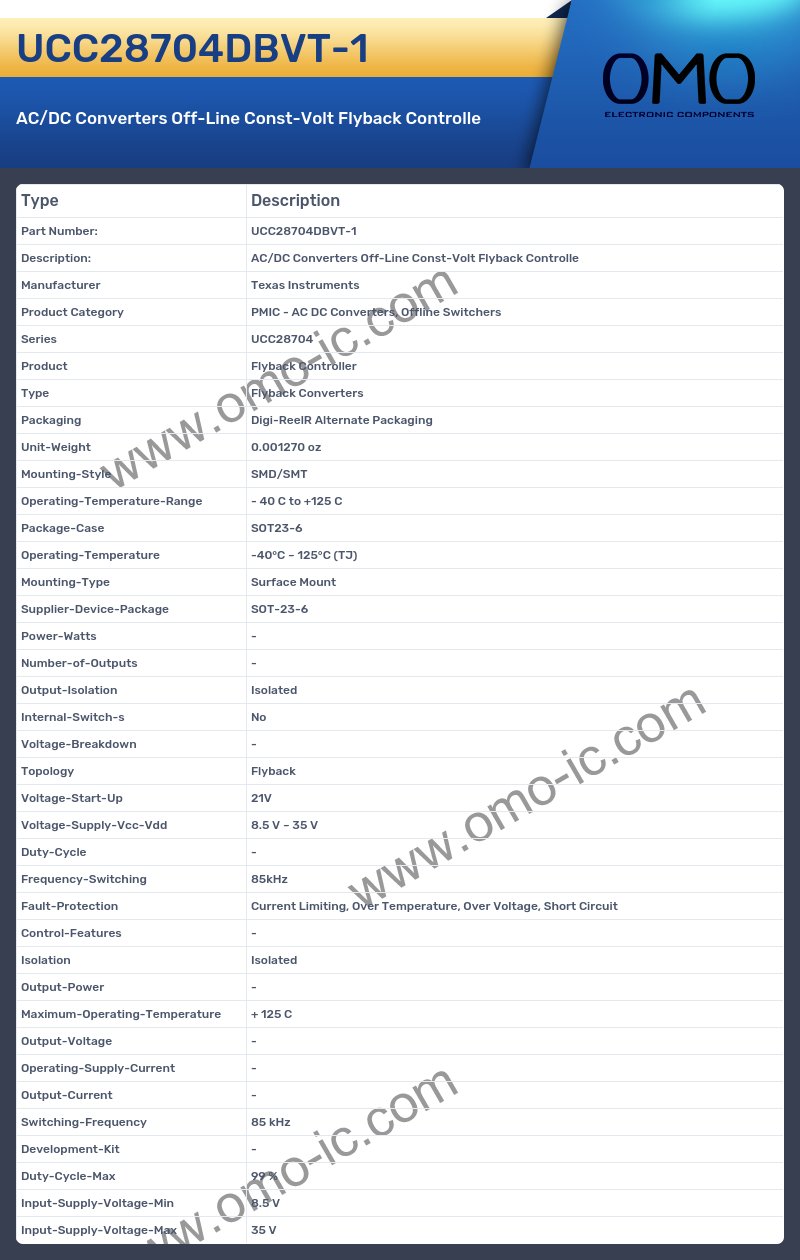

UCC28704DBVT-1 Image

UCC28704DBVT-1 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series UCC28704
• Product Flyback Controller
• Type Flyback Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to +125 C
• Package-Case SOT23-6
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-23-6
• Power-Watts -
• Number-of-Outputs -
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback
• Voltage-Start-Up 21V
• Voltage-Supply-Vcc-Vdd 8.5 V ~ 35 V
• Duty-Cycle -
• Frequency-Switching 85kHz
• Fault-Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit
• Control-Features -
• Isolation Isolated
• Output-Power -
• Maximum-Operating-Temperature + 125 C
• Output-Voltage -
• Operating-Supply-Current -
• Output-Current -
• Switching-Frequency 85 kHz
• Development-Kit -
• Duty-Cycle-Max 99 %
• Input-Supply-Voltage-Min 8.5 V
• Input-Supply-Voltage-Max 35 V
