UCC28220D

UCC28220D Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: -40°C ~ 105°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 16-SOIC Number-of-Outputs: 2 Topology: Flyback, Forward Converter feedback Supply Voltage: 8.4 V ~ 14.5 V This product features 'Frequency-Switching' at 200kHz ~ 2MHz for optimal performance. The Control-Features include Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.75 The value of No is included as a product attribute. No enabled Serial Interfaces: -

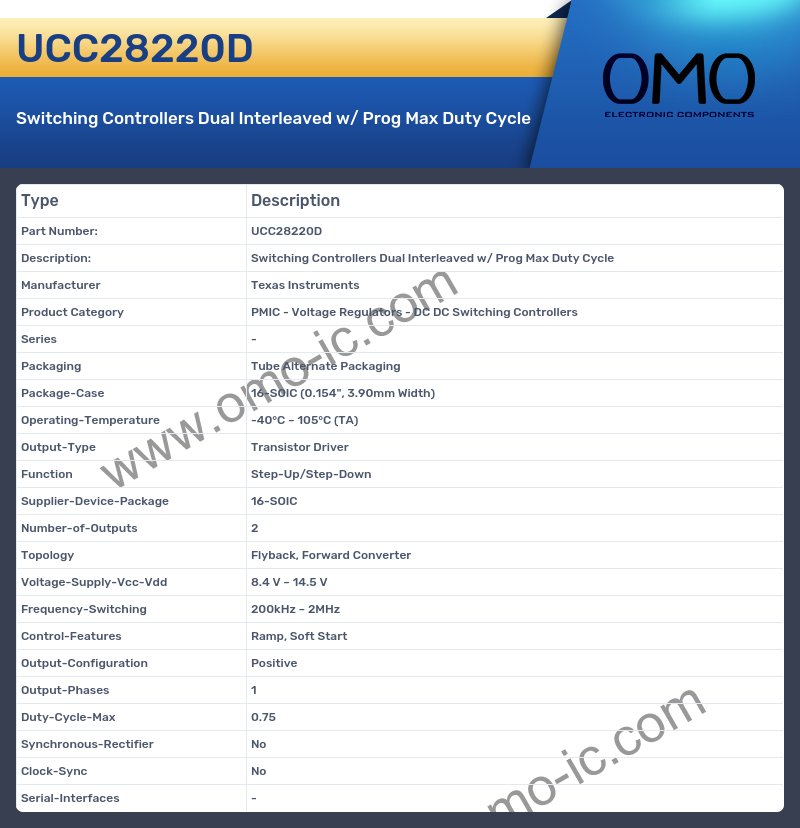

UCC28220D Image

UCC28220D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -40°C ~ 105°C (TA)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 2
• Topology Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 8.4 V ~ 14.5 V
• Frequency-Switching 200kHz ~ 2MHz
• Control-Features Ramp, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.75
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
