UCC2813N-5

UCC2813N-5 Overview

Product belongs to the - series. Tube is the packaging method for this product 8-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 8-PDIP Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback Supply Voltage: 3.6 V ~ 12 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.49 The value of No is included as a product attribute. No enabled Serial Interfaces: -

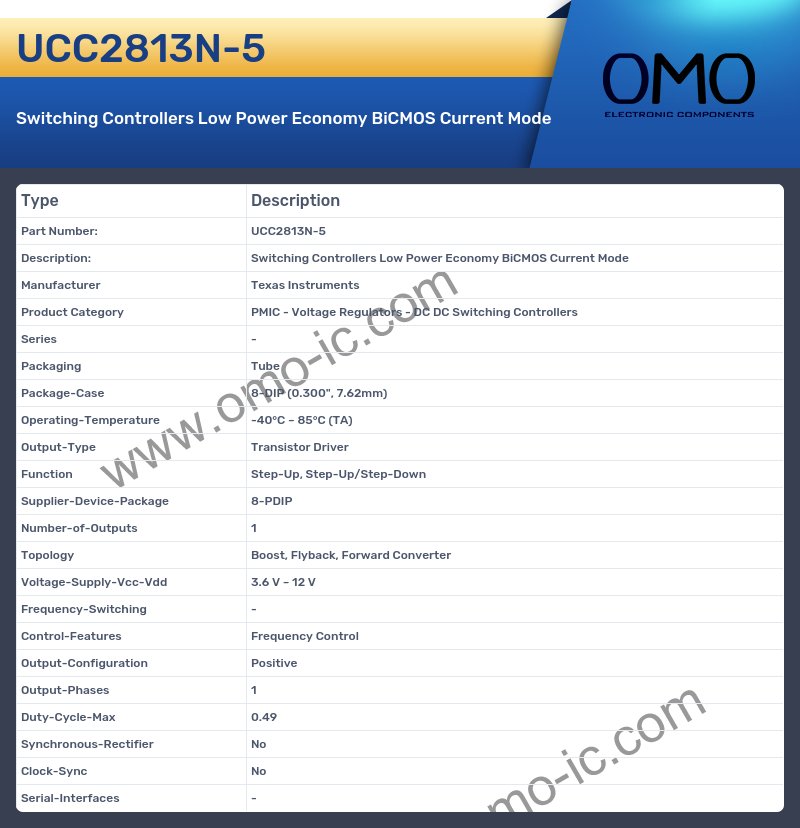

UCC2813N-5 Image

UCC2813N-5 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 8-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 8-PDIP
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 3.6 V ~ 12 V
• Frequency-Switching -
• Control-Features Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.49
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
