UCC2809PW-2

UCC2809PW-2 Overview

Product belongs to the UCC2809-2 series. Tube is the packaging method for this product Weight of 0.001376 oz SMD/SMT Mounting-Style TSSOP-8 Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 8-TSSOP Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 8 V ~ 19 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include Frequency Control, Soft Start function. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switching frequency is 1000 kHz Maximum duty cycle of 70 %

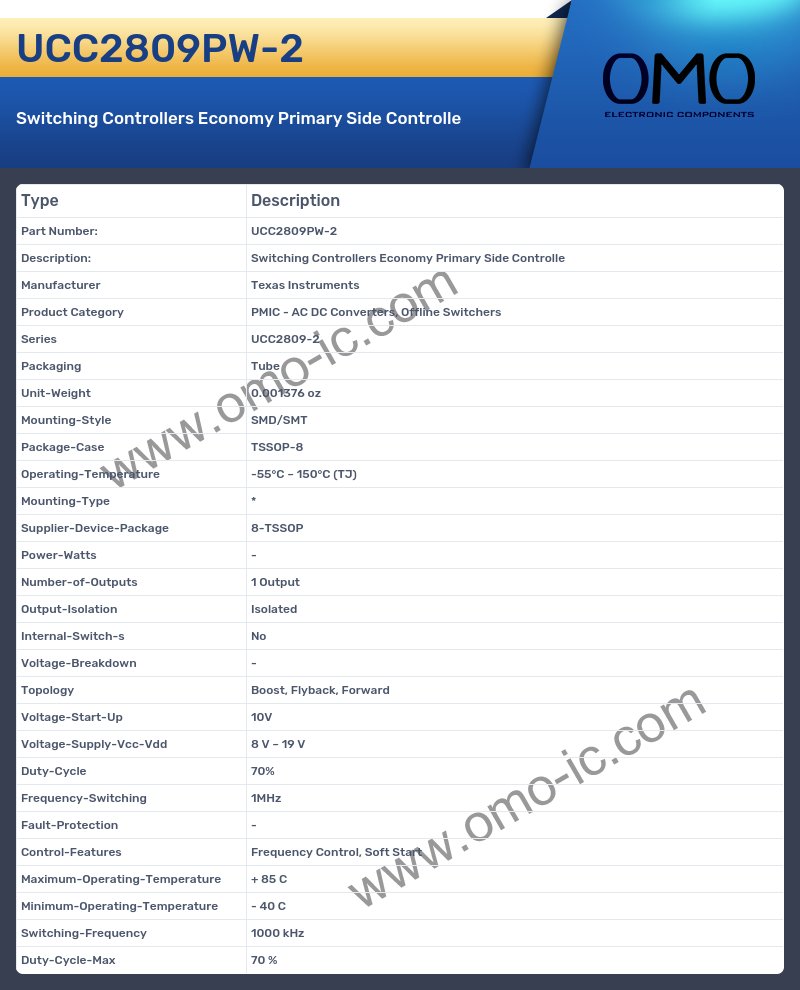

UCC2809PW-2 Image

UCC2809PW-2 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series UCC2809-2
• Packaging Tube
• Unit-Weight 0.001376 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-8
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type *
• Supplier-Device-Package 8-TSSOP
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Boost, Flyback, Forward
• Voltage-Start-Up 10V
• Voltage-Supply-Vcc-Vdd 8 V ~ 19 V
• Duty-Cycle 70%
• Frequency-Switching 1MHz
• Fault-Protection -
• Control-Features Frequency Control, Soft Start
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switching-Frequency 1000 kHz
• Duty-Cycle-Max 70 %
