UCC28089D

UCC28089D Overview

Product belongs to the UCC28089 series. Type: Primary Side PWM Controller Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 105°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 8-SOIC Configuration Programmable Push-Pull Output Number-of-Outputs: 2 Topology: Push-Pull feedback Supply Voltage: 8.5 V ~ 14 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Dead Time Control, Frequency Control function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 0.5 The value of No is included as a product attribute. Yes enabled Serial Interfaces: - Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Output current: 1 A This product has a 13 ns of 16 ns. This product has a 28 ns of 16 ns. Maximum supply voltage of 15 V Minimum supply voltage is 8 V

UCC28089D Image

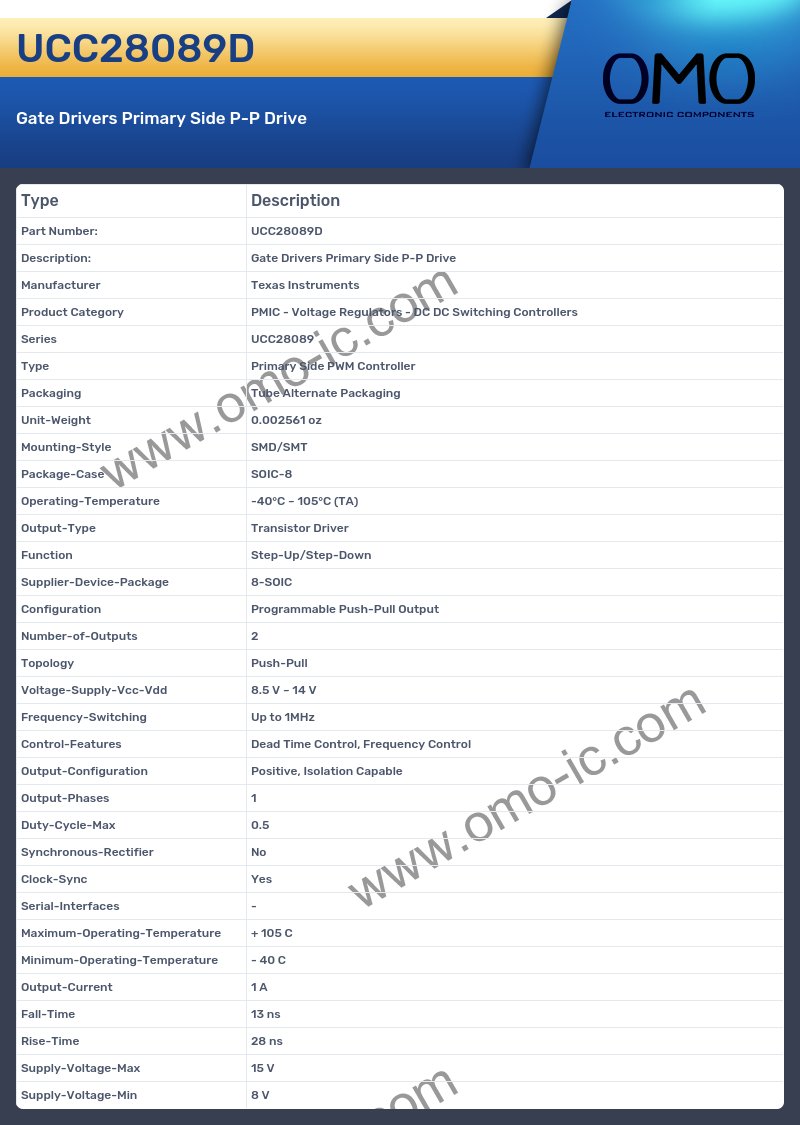

UCC28089D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC28089
• Type Primary Side PWM Controller
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 105°C (TA)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 8-SOIC
• Configuration Programmable Push-Pull Output
• Number-of-Outputs 2
• Topology Push-Pull
• Voltage-Supply-Vcc-Vdd 8.5 V ~ 14 V
• Frequency-Switching Up to 1MHz
• Control-Features Dead Time Control, Frequency Control
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 0.5
• Synchronous-Rectifier No
• Clock-Sync Yes
• Serial-Interfaces -
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Output-Current 1 A
• Fall-Time 13 ns
• Rise-Time 28 ns
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 8 V
