UCC2806Q

UCC2806Q Overview

Product belongs to the UCC2806 series. Tube is the packaging method for this product Weight of 0.025468 oz SMD/SMT Mounting-Style Number-of-Outputs: 2 Output Topology: Boost Flyback Forward feedback Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output current: 500 mA Switching frequency is 1000 kHz This product has a 35 ns of 16 ns. This product has a 35 ns of 16 ns. PLCC-20 Maximum duty cycle of 50 %

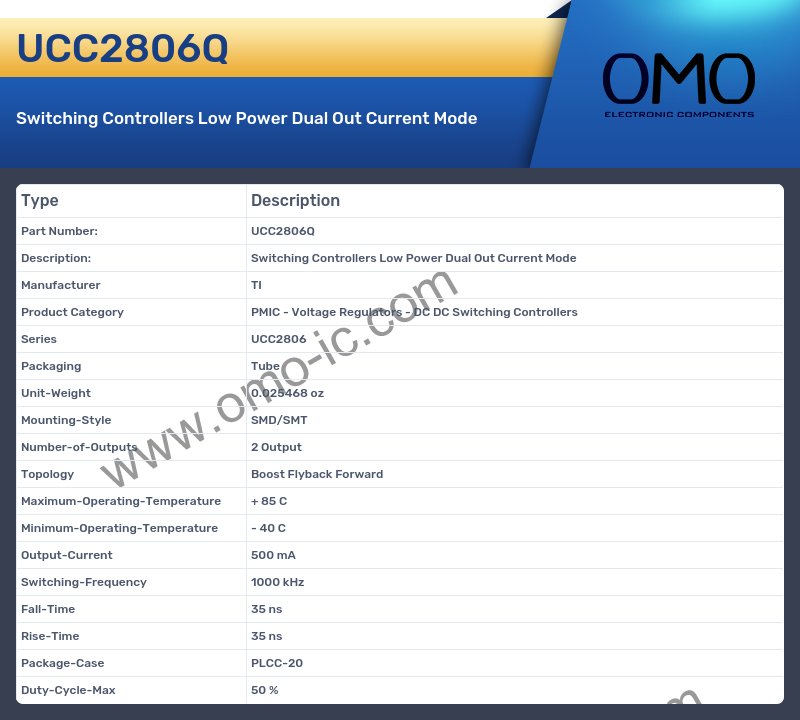

UCC2806Q Image

UCC2806Q Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC2806
• Packaging Tube
• Unit-Weight 0.025468 oz
• Mounting-Style SMD/SMT
• Number-of-Outputs 2 Output
• Topology Boost Flyback Forward
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Current 500 mA
• Switching-Frequency 1000 kHz
• Fall-Time 35 ns
• Rise-Time 35 ns
• Package-Case PLCC-20
• Duty-Cycle-Max 50 %
