| Mfr. #: | UCC2804D |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | IC REG CTRLR BST FLYBK PWM 8SOIC |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | UCC2804D Scheda dati |
Product belongs to the UCC2804 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) * mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: - This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 8.3 V ~ 12 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output current: 1000 mA Switching frequency is 1000 kHz This product has a 44 ns of 16 ns. This product has a 41 ns of 16 ns. Maximum duty cycle of 50 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

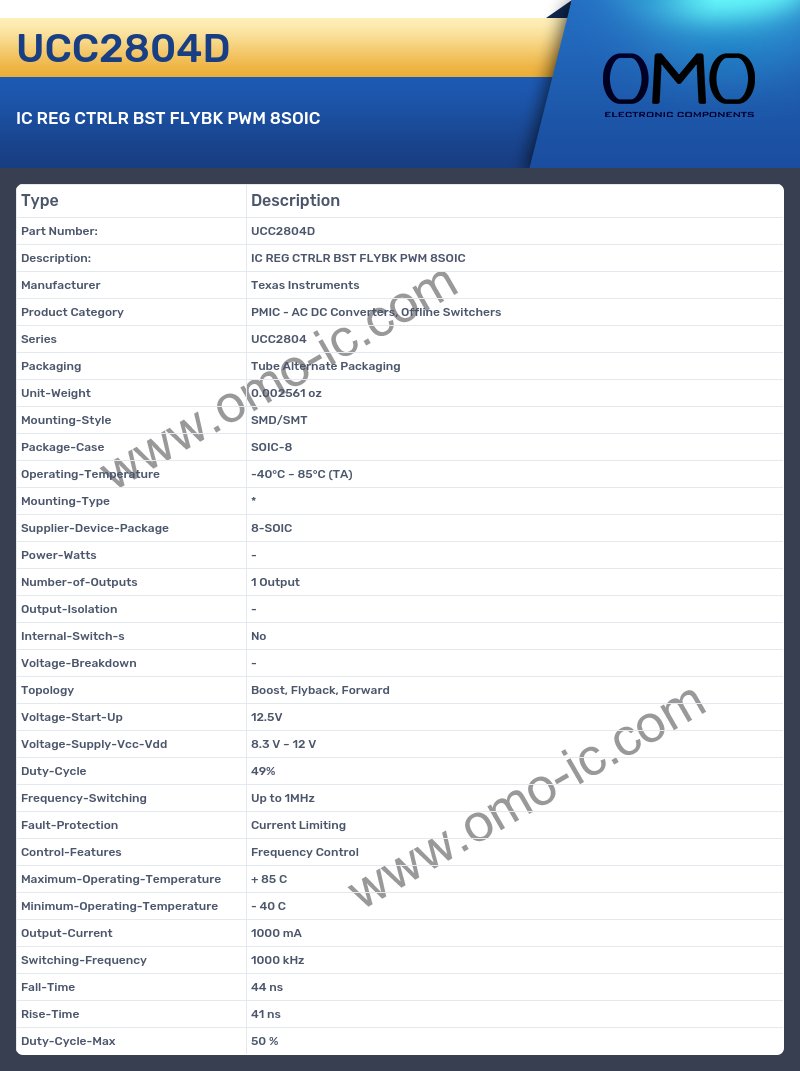

UCC2804D Specifications
A: What is the Series of the product?
Q: The Series of the product is UCC2804.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.002561 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOIC-8.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 85°C (TA)
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed *
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 8-SOIC
A: Is the cutoff frequency of the product Number-of-Outputs?
Q: Yes, the product's Number-of-Outputs is indeed 1 Output
A: What is the Output-Isolation of the product?
Q: The Output-Isolation of the product is -.
A: Is the cutoff frequency of the product Internal-Switch-s?
Q: Yes, the product's Internal-Switch-s is indeed No
A: What is the Topology of the product?
Q: The Topology of the product is Boost, Flyback, Forward.
A: What is the Voltage-Supply-Vcc-Vdd of the product?
Q: The Voltage-Supply-Vcc-Vdd of the product is 8.3 V ~ 12 V.
A: Is the cutoff frequency of the product Frequency-Switching?
Q: Yes, the product's Frequency-Switching is indeed Up to 1MHz
A: Is the cutoff frequency of the product Control-Features?
Q: Yes, the product's Control-Features is indeed Frequency Control
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: Is the cutoff frequency of the product Output-Current?
Q: Yes, the product's Output-Current is indeed 1000 mA
A: Is the cutoff frequency of the product Switching-Frequency?
Q: Yes, the product's Switching-Frequency is indeed 1000 kHz
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 44 ns
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 41 ns
A: At what frequency does the Duty-Cycle-Max?
Q: The product Duty-Cycle-Max is 50 %.
