UCC25701NG4

UCC25701NG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 14-DIP (0.300", 7.62mm) Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 14-PDIP Output-Isolation: Isolated This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 9 V ~ 15 V This product features 'Frequency-Switching' at 700kHz for optimal performance. The Control-Features include Soft Start, Sync function.

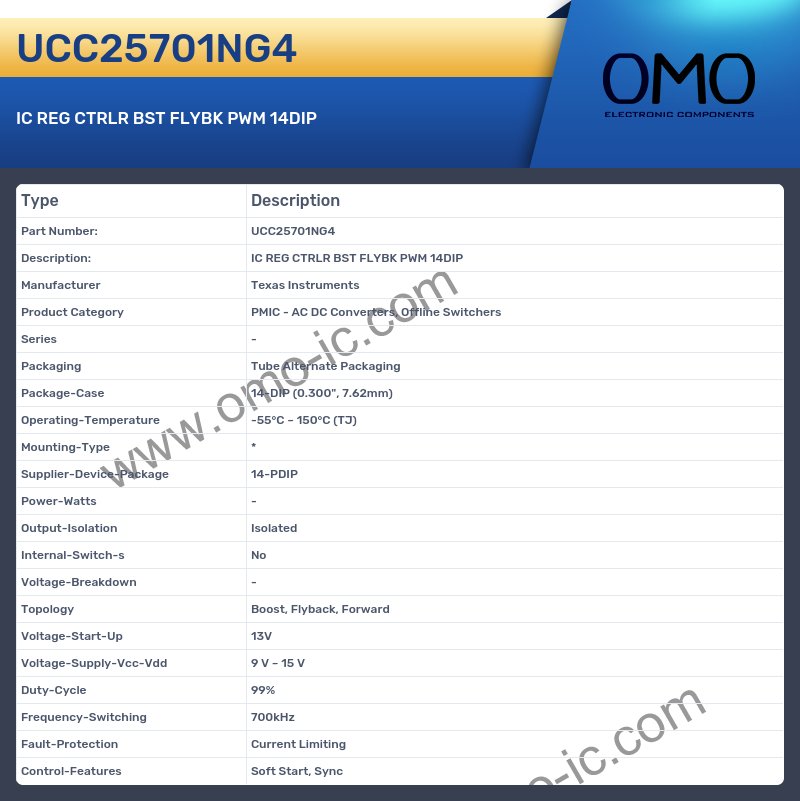

UCC25701NG4 Image

UCC25701NG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 14-DIP (0.300", 7.62mm)
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type *
• Supplier-Device-Package 14-PDIP
• Power-Watts -
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Boost, Flyback, Forward
• Voltage-Start-Up 13V
• Voltage-Supply-Vcc-Vdd 9 V ~ 15 V
• Duty-Cycle 99%
• Frequency-Switching 700kHz
• Fault-Protection Current Limiting
• Control-Features Soft Start, Sync
