UC3823QG3

UC3823QG3 Overview

Product belongs to the - series. Tube is the packaging method for this product 20-LCC (J-Lead) Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 20-PLCC (9x9) Number-of-Outputs: 1 Topology: Buck, Boost, Flyback, Forward Converter feedback Supply Voltage: 8.4 V ~ 30 V This product features 'Frequency-Switching' at 340kHz ~ 460kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.85 The value of No is included as a product attribute. No enabled Serial Interfaces: -

UC3823QG3 Image

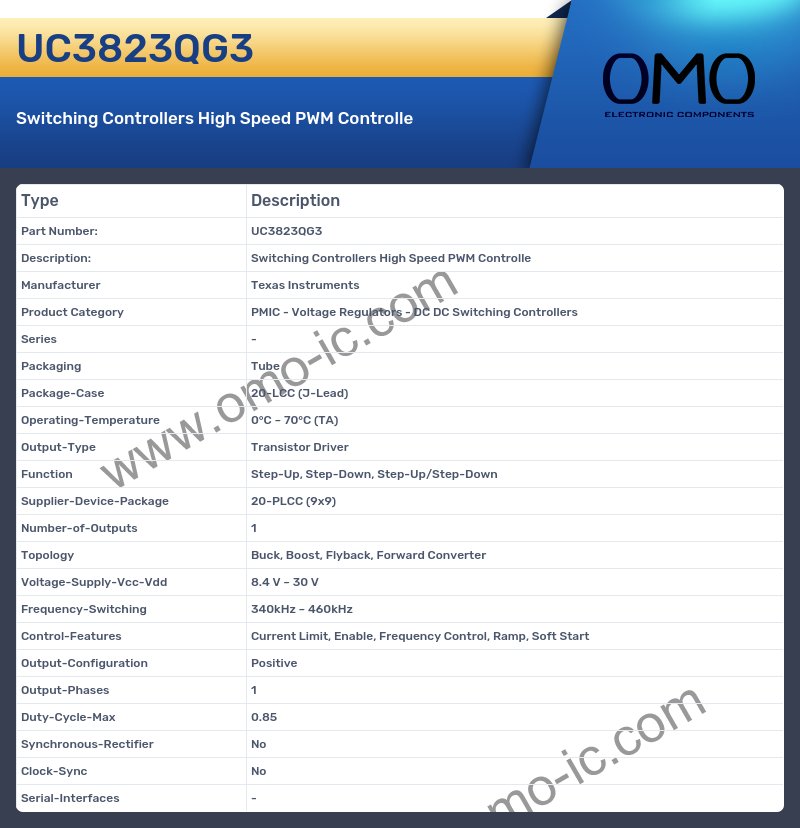

UC3823QG3 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 20-LCC (J-Lead)
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 20-PLCC (9x9)
• Number-of-Outputs 1
• Topology Buck, Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 8.4 V ~ 30 V
• Frequency-Switching 340kHz ~ 460kHz
• Control-Features Current Limit, Enable, Frequency Control, Ramp, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.85
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
