UC3526AQ

UC3526AQ Overview

Product belongs to the - series. Tube is the packaging method for this product 20-LCC (J-Lead) Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 20-PLCC (9x9) Number-of-Outputs: 2 Topology: Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 7 V ~ 35 V This product features 'Frequency-Switching' at 1Hz ~ 600kHz for optimal performance. The Control-Features include Enable, Frequency Control, Reset, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.49 The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: -

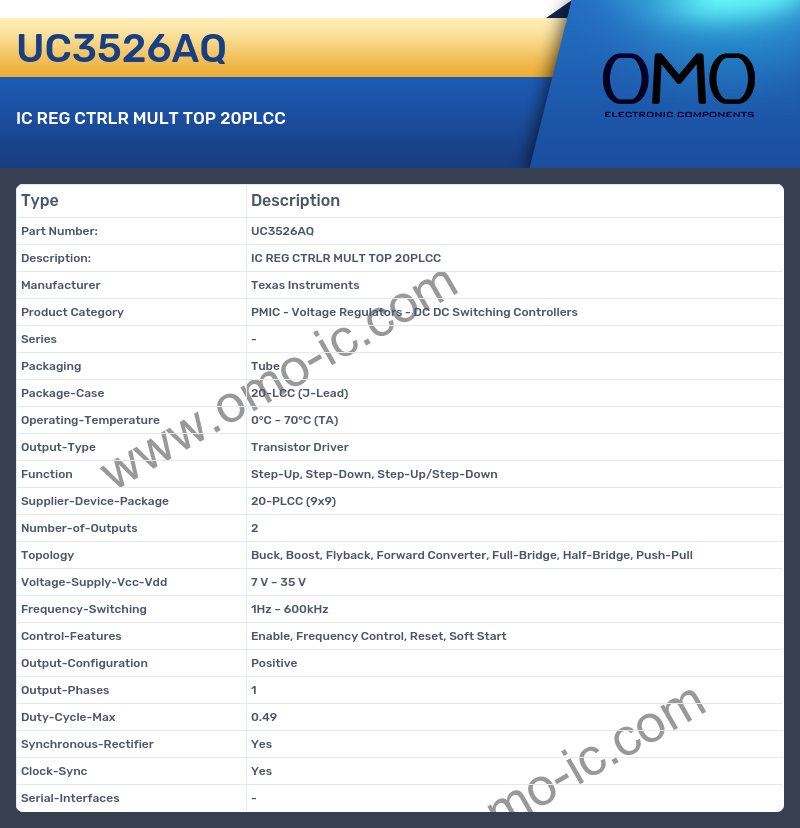

UC3526AQ Image

UC3526AQ Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 20-LCC (J-Lead)
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 20-PLCC (9x9)
• Number-of-Outputs 2
• Topology Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 7 V ~ 35 V
• Frequency-Switching 1Hz ~ 600kHz
• Control-Features Enable, Frequency Control, Reset, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.49
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
