UC3524N

UC3524N Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 16-DIP (0.300", 7.62mm) Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-PDIP Number-of-Outputs: 2 Topology: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 8 V ~ 40 V This product features 'Frequency-Switching' at 300kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.45 The value of No is included as a product attribute. No enabled Serial Interfaces: -

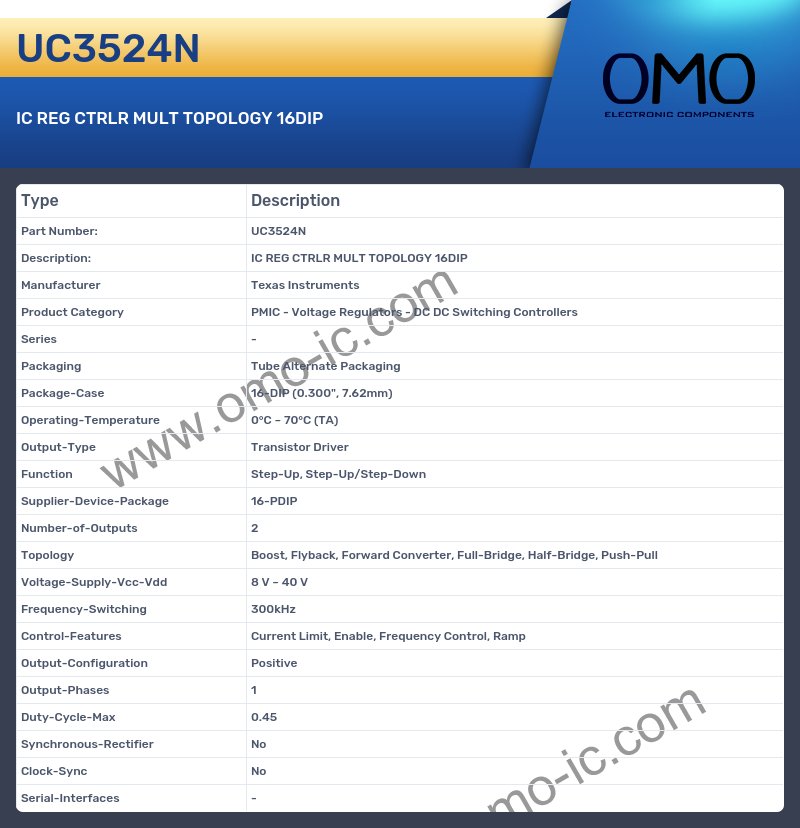

UC3524N Image

UC3524N Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 16-DIP (0.300", 7.62mm)
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 16-PDIP
• Number-of-Outputs 2
• Topology Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 8 V ~ 40 V
• Frequency-Switching 300kHz
• Control-Features Current Limit, Enable, Frequency Control, Ramp
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.45
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
