UC2861DWG4

UC2861DWG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.295", 7.50mm Width) Operational temperature range: -25°C ~ 85°C (TA) * mounting type Supplier device package: 16-SOIC Output-Isolation: Non-Isolated This product has Yes. Topology: Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 10.5 V ~ 22 V This product features 'Frequency-Switching' at 10kHz ~ 1MHz for optimal performance. The Control-Features include Soft Start function.

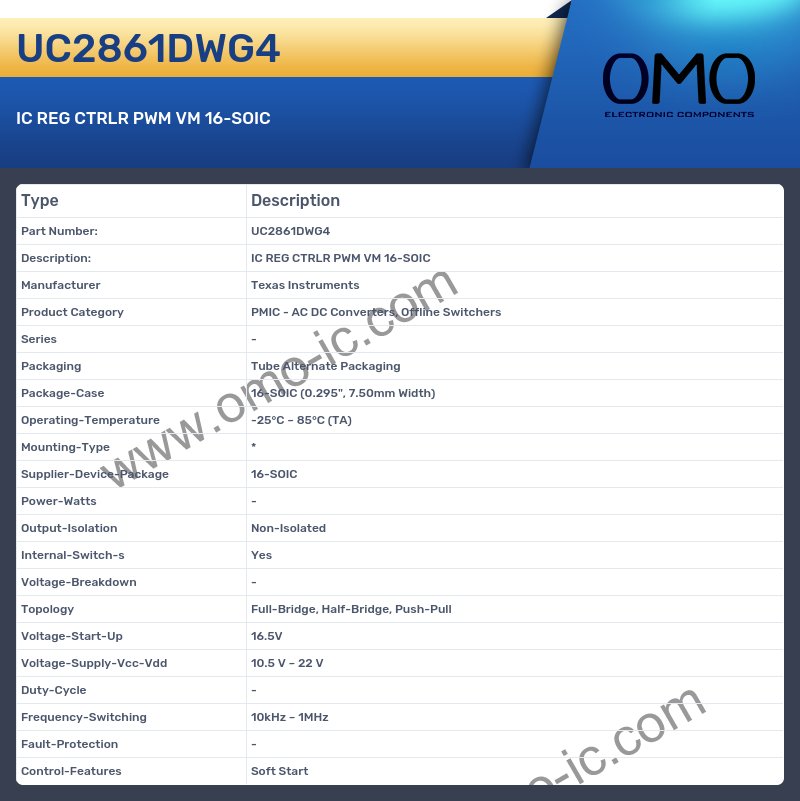

UC2861DWG4 Image

UC2861DWG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.295", 7.50mm Width)
• Operating-Temperature -25°C ~ 85°C (TA)
• Mounting-Type *
• Supplier-Device-Package 16-SOIC
• Power-Watts -
• Output-Isolation Non-Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown -
• Topology Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Start-Up 16.5V
• Voltage-Supply-Vcc-Vdd 10.5 V ~ 22 V
• Duty-Cycle -
• Frequency-Switching 10kHz ~ 1MHz
• Fault-Protection -
• Control-Features Soft Start
