UC2845BD1

UC2845BD1 Overview

Product belongs to the UC2845B series. Tube is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -25°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Boost, Flyback feedback Supply Voltage: 7.6 V ~ 30 V This product features 'Frequency-Switching' at 52kHz for optimal performance. The Control-Features include Frequency Control function. The Positive or Negative, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 50 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 30 V supply voltage for reliable performance. Output voltage: 4.95 V to 5.05 V 12 mA is 92 nA. Output current: 1000 mA Switching frequency is 500 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns.

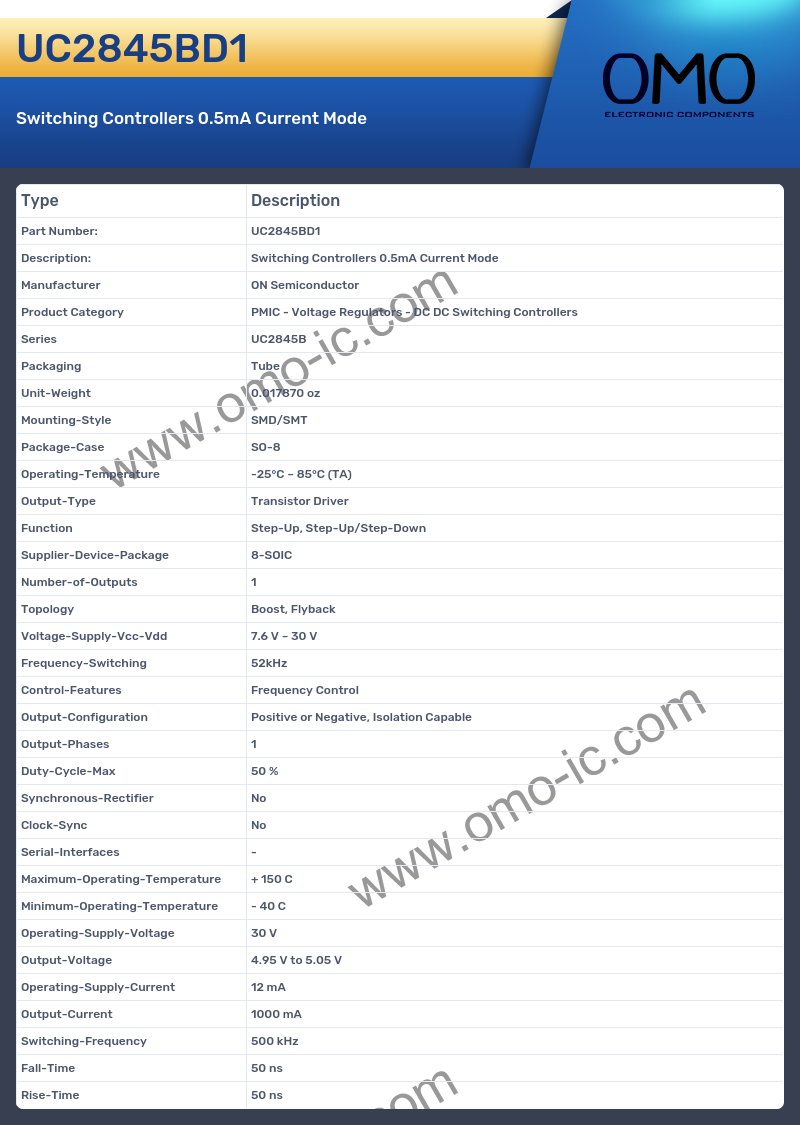

UC2845BD1 Image

UC2845BD1 Specifications

• Manufacturer ON Semiconductor
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UC2845B
• Packaging Tube
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -25°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 1
• Topology Boost, Flyback
• Voltage-Supply-Vcc-Vdd 7.6 V ~ 30 V
• Frequency-Switching 52kHz
• Control-Features Frequency Control
• Output-Configuration Positive or Negative, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 50 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 30 V
• Output-Voltage 4.95 V to 5.05 V
• Operating-Supply-Current 12 mA
• Output-Current 1000 mA
• Switching-Frequency 500 kHz
• Fall-Time 50 ns
• Rise-Time 50 ns
