TXB0104ZXUR Overview

Product belongs to the TXB0104 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style BGA-12 Microstar Junior Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Tri-State, Non-Inverted Supplier device package: 12-BGA MICROSTAR JUNIOR (2.5x2.0) 1 is 8. Voltage Level Translator logic type This product uses Voltage Level as the translator type This product's Bidirectional 4 Channels The product is designed to operate at 1.2 V ~ 3.6 V. The Voltage-VCCB is set at 1.65 V ~ 5.5 V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 3.6 V 5.5 V Minimum supply voltage is 1.2 V 1.65 V 7.4 ns is 23 microseconds.

TXB0104ZXUR Image

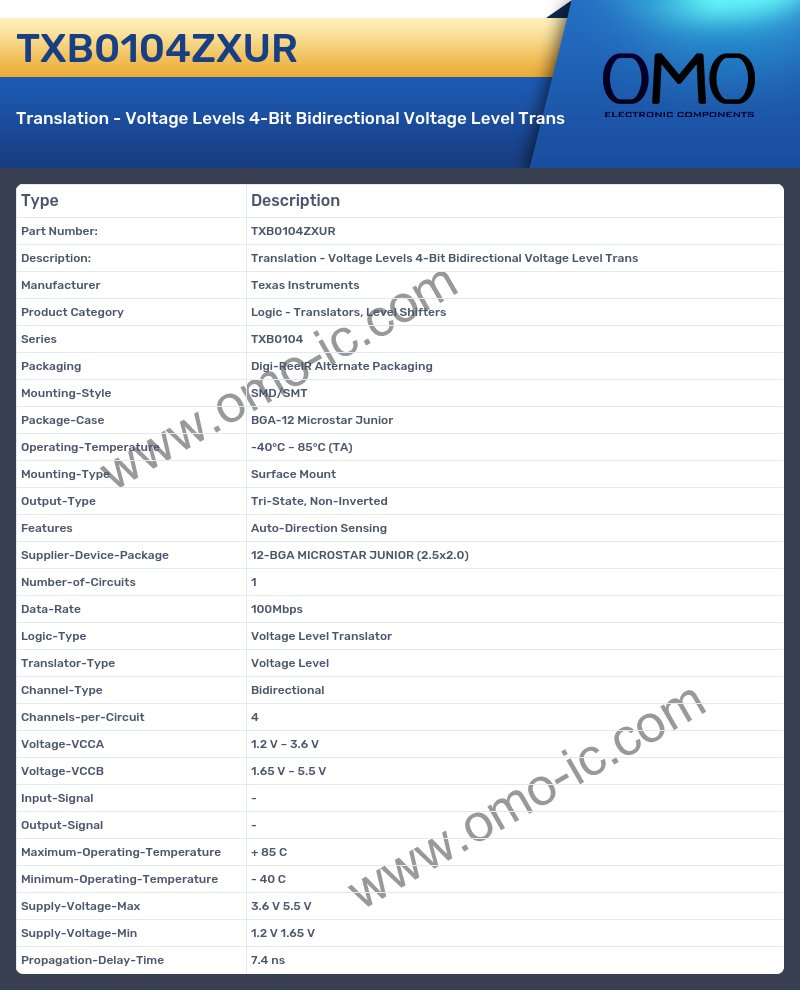

TXB0104ZXUR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Translators, Level Shifters
• Series TXB0104
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case BGA-12 Microstar Junior
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Tri-State, Non-Inverted
• Features Auto-Direction Sensing
• Supplier-Device-Package 12-BGA MICROSTAR JUNIOR (2.5x2.0)
• Number-of-Circuits 1
• Data-Rate 100Mbps
• Logic-Type Voltage Level Translator
• Translator-Type Voltage Level
• Channel-Type Bidirectional
• Channels-per-Circuit 4
• Voltage-VCCA 1.2 V ~ 3.6 V
• Voltage-VCCB 1.65 V ~ 5.5 V
• Input-Signal -
• Output-Signal -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 3.6 V 5.5 V
• Supply-Voltage-Min 1.2 V 1.65 V
• Propagation-Delay-Time 7.4 ns
