TSX393IPT

TSX393IPT Overview

Product belongs to the - series. This product is categorized as Analog Comparators Type: CMOS Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.005573 oz SMD/SMT Mounting-Style TSSOP-8 The CMOS for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Number of channels: 2 Channel Supplier device package: 8-TSSOP Voltage supply range: 2.7 V ~ 16 V, ±1.35 V ~ 8 V 2 element 13μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 2 us response time Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 5 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 2.7 V General Purpose comparator type Input bias current of 1 pA The 5 mV. The 1 pA. 20 mA The CMRR-Common-Mode-Rejection-Ratio is 90 dB.

TSX393IPT Image

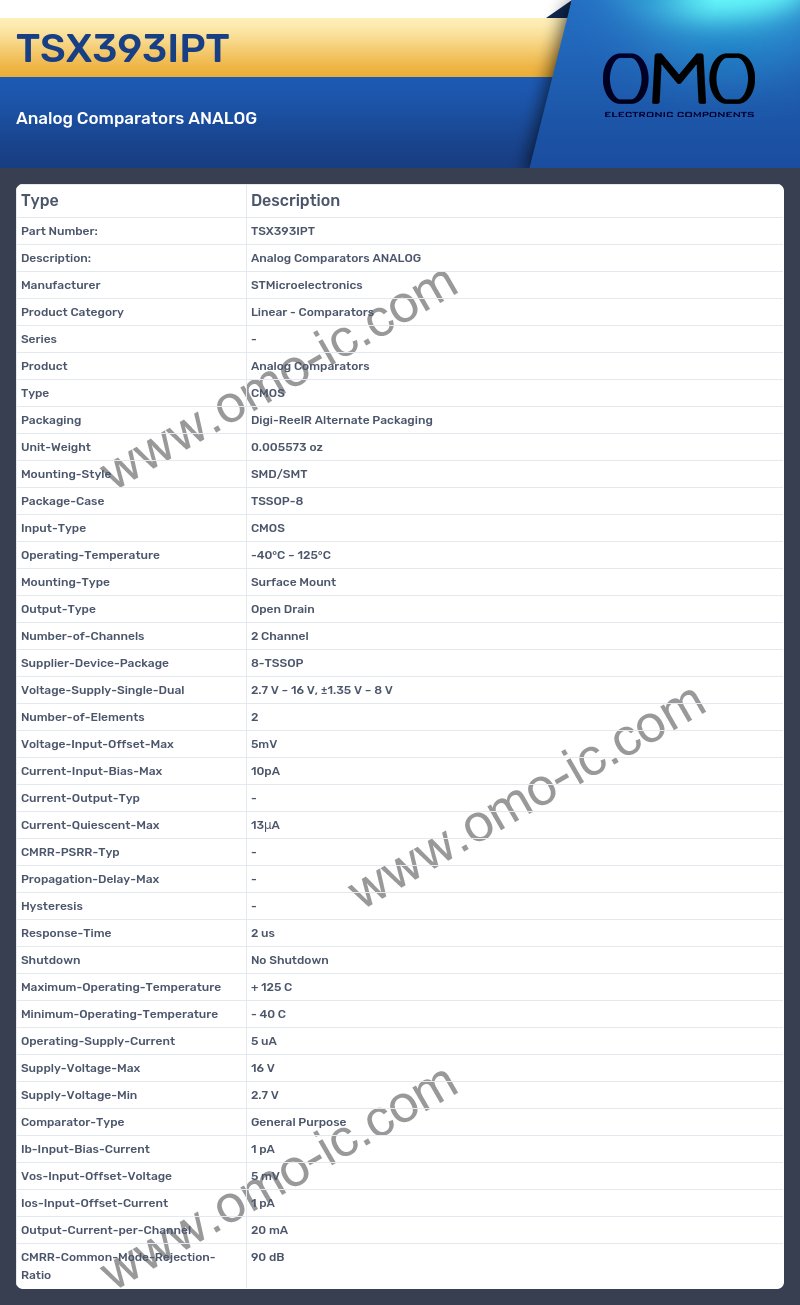

TSX393IPT Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series -
• Product Analog Comparators
• Type CMOS
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.005573 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-8
• Input-Type CMOS
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-TSSOP
• Voltage-Supply-Single-Dual 2.7 V ~ 16 V, ±1.35 V ~ 8 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 5mV
• Current-Input-Bias-Max 10pA
• Current-Output-Typ -
• Current-Quiescent-Max 13μA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 2 us
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 2.7 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 1 pA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 1 pA
• Output-Current-per-Channel 20 mA
• CMRR-Common-Mode-Rejection-Ratio 90 dB
