TSM982ESA+

TSM982ESA+ Overview

Product belongs to the TSM98x series. This product is categorized as Analog Comparators Type: with Voltage Reference Tube Alternate Packaging is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CMOS, TTL Supplier device package: 8-SOIC Voltage supply range: 2.5 V ~ 11 V, ±1.25 V ~ 5.5 V 2 element 6μA maximum quiescent current. Maximum propagation delay: 12μs Hysteresis value of 50mV

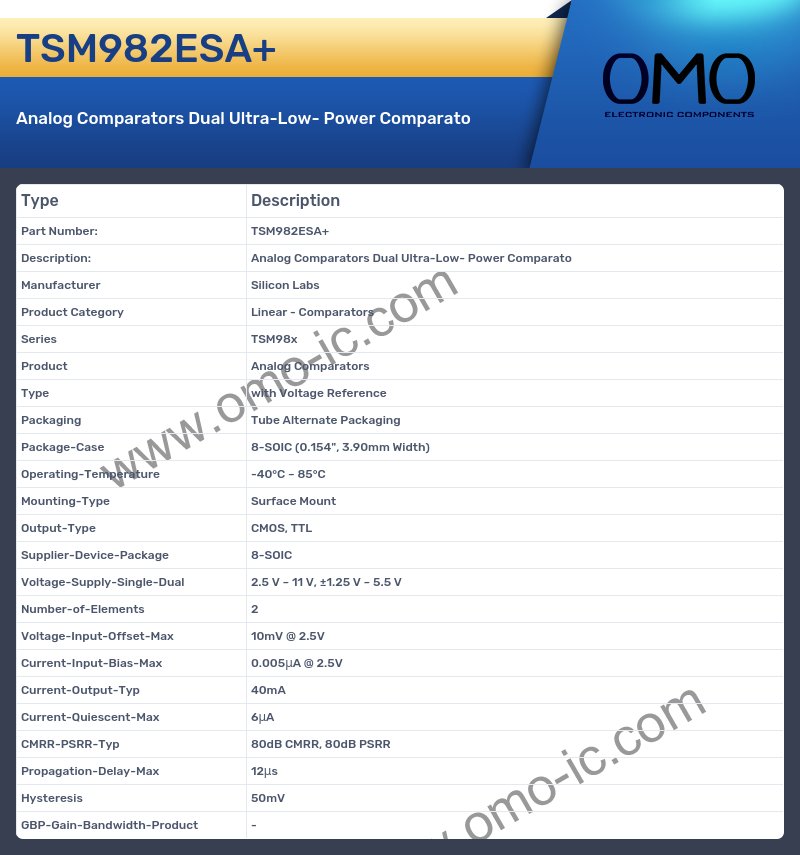

TSM982ESA+ Image

TSM982ESA+ Specifications

• Manufacturer Silicon Labs
• Product Category Linear - Comparators
• Series TSM98x
• Product Analog Comparators
• Type with Voltage Reference
• Packaging Tube Alternate Packaging
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CMOS, TTL
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 2.5 V ~ 11 V, ±1.25 V ~ 5.5 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 10mV @ 2.5V
• Current-Input-Bias-Max 0.005μA @ 2.5V
• Current-Output-Typ 40mA
• Current-Quiescent-Max 6μA
• CMRR-PSRR-Typ 80dB CMRR, 80dB PSRR
• Propagation-Delay-Max 12μs
• Hysteresis 50mV
• GBP-Gain-Bandwidth-Product -
