TSM971CSA+T

TSM971CSA+T Overview

Product belongs to the TSM97x series. This product is categorized as Analog Comparators Type: with Voltage Reference Tape & Reel (TR) Alternate Packaging is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: CMOS, TTL Supplier device package: 8-SOIC Voltage supply range: 2.5 V ~ 11 V, ±1.25 V ~ 5.5 V 1 element 4μA maximum quiescent current. Maximum propagation delay: 12μs Hysteresis value of 50mV This product is also known as TSM971CSA+ and can be referred to by either part number.

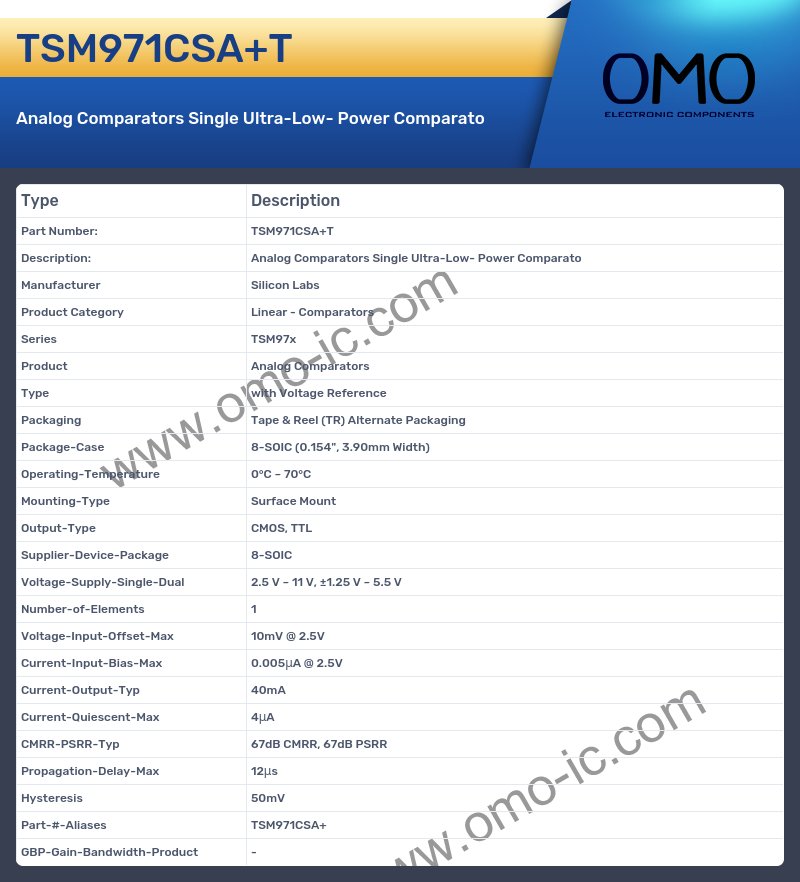

TSM971CSA+T Image

TSM971CSA+T Specifications

• Manufacturer Silicon Labs
• Product Category Linear - Comparators
• Series TSM97x
• Product Analog Comparators
• Type with Voltage Reference
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type CMOS, TTL
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 2.5 V ~ 11 V, ±1.25 V ~ 5.5 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 10mV @ 2.5V
• Current-Input-Bias-Max 0.005μA @ 2.5V
• Current-Output-Typ 40mA
• Current-Quiescent-Max 4μA
• CMRR-PSRR-Typ 67dB CMRR, 67dB PSRR
• Propagation-Delay-Max 12μs
• Hysteresis 50mV
• Part-#-Aliases TSM971CSA+
• GBP-Gain-Bandwidth-Product -
