TSM111CDT

TSM111CDT Overview

Product belongs to the TSM111 series. Type: Multi-Voltage Supervisor Digi-ReelR is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SO-20 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Supplier device package: 20-SO The -. This product's -. This product has 3 monitored voltages. The reset timeout for this product is 100 ms Minimum. This product's 4V, 6.1V, 14.2V. Power-off control: 1000 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 5000 uA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 14.5 V This product includes No Watchdog This product's 3.3 V 5 V 12 V is 2.32 V. This product can only 3 Input at a time. This product features a No Manual Reset function that allows for manual reset. The 4.2 V 6.4 V 15 V is 2.35 V. 3.8 V 5.8 V 13.4 V is set to 2.29 V.

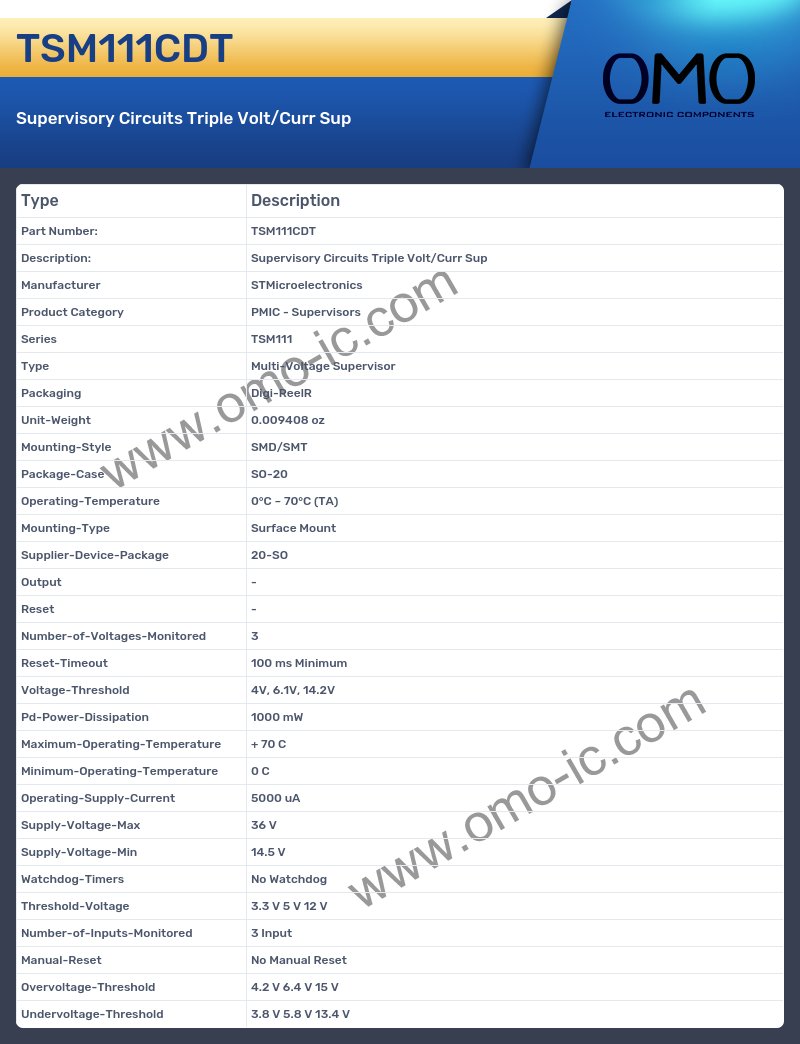

TSM111CDT Image

TSM111CDT Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series TSM111
• Type Multi-Voltage Supervisor
• Packaging Digi-ReelR
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Package-Case SO-20
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Supplier-Device-Package 20-SO
• Output -
• Reset -
• Number-of-Voltages-Monitored 3
• Reset-Timeout 100 ms Minimum
• Voltage-Threshold 4V, 6.1V, 14.2V
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 5000 uA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 14.5 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 3.3 V 5 V 12 V
• Number-of-Inputs-Monitored 3 Input
• Manual-Reset No Manual Reset
• Overvoltage-Threshold 4.2 V 6.4 V 15 V
• Undervoltage-Threshold 3.8 V 5.8 V 13.4 V
