TS5L100D

TS5L100D Overview

Product belongs to the TS5L100 series. This product is categorized as LAN Switches Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Ethernet Switch. Supplier device package: 16-SOIC - is 8. Voltage supply source: Analog and digital Single Supply Configuration 4 x SPDT Circuit type: 4 x SPDT 19 Ohm maximum on-state resistance Voltage supply range: 6 V ~ 6.5 V This product has a 3μA of 200μA. The - 350 MHz bandwidth Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 6 V to 6.5 V supply voltage for reliable performance. Maximum supply current: 3 uA Maximum supply voltage of 6.5 V Minimum supply voltage is 6 V Max on-resistance of 19 Ohms Maximum off time: 4 ns 4 Switch switch functionality Maximum on-time: 7 ns

TS5L100D Image

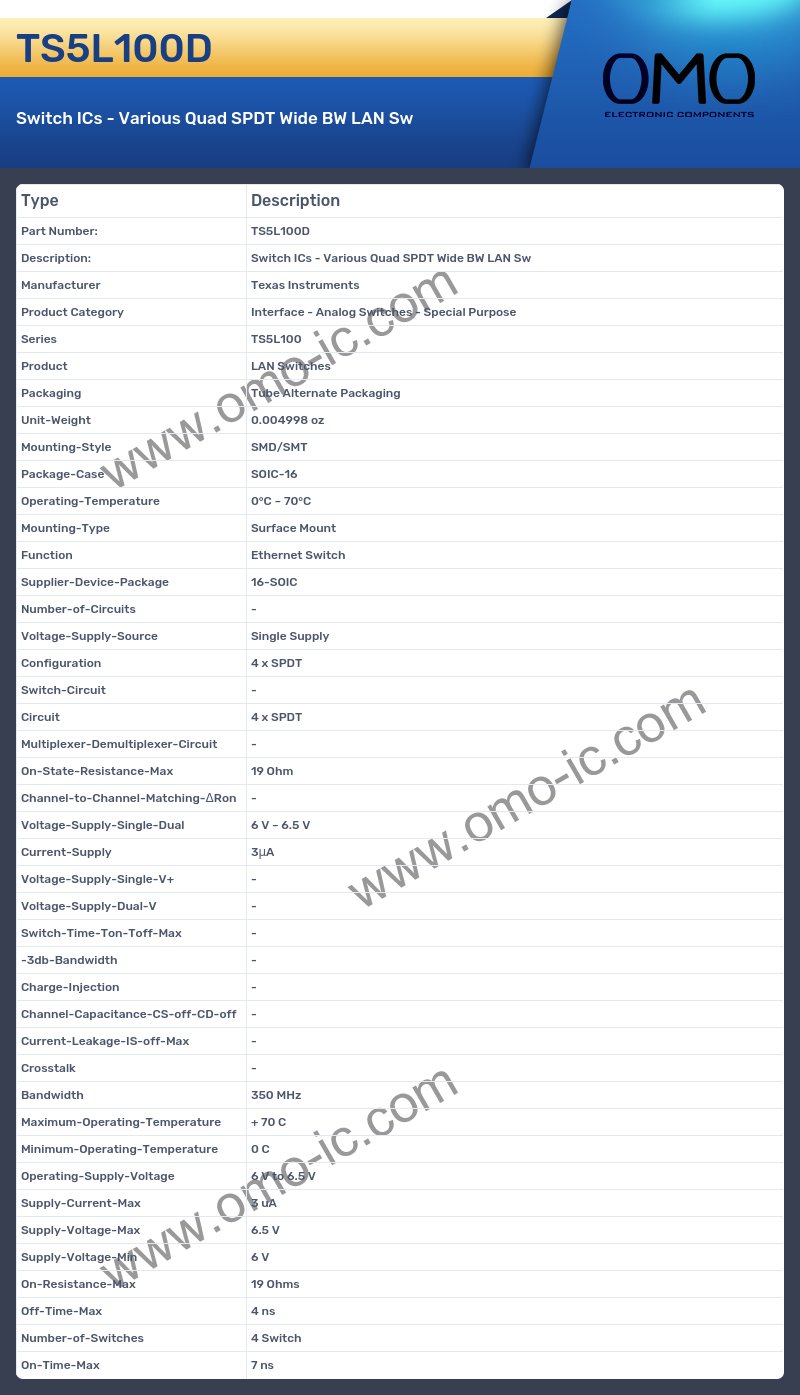

TS5L100D Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Analog Switches - Special Purpose
• Series TS5L100
• Product LAN Switches
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Function Ethernet Switch
• Supplier-Device-Package 16-SOIC
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 4 x SPDT
• Switch-Circuit -
• Circuit 4 x SPDT
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 19 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 6 V ~ 6.5 V
• Current-Supply 3μA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 350 MHz
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 6 V to 6.5 V
• Supply-Current-Max 3 uA
• Supply-Voltage-Max 6.5 V
• Supply-Voltage-Min 6 V
• On-Resistance-Max 19 Ohms
• Off-Time-Max 4 ns
• Number-of-Switches 4 Switch
• On-Time-Max 7 ns
