TS3USBA225RUTR

TS3USBA225RUTR Overview

Product belongs to the TS3USBA225 series. This product is categorized as USB 2.0 Audio Switches Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style UQFN-12 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Audio, USB Switch. Supplier device package: 12-UQFN (1.7x2) - is 8. Voltage supply source: Analog and digital Single Supply Configuration 2 x SP3T Circuit type: 2 x 3:1 2.5 Ohm (Audio), 6.5 Ohm (USB) maximum on-state resistance Voltage supply range: 2.7 V ~ 4.3 V This product has a 25μA of 200μA. The - 1.9 GHz bandwidth Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5 V supply voltage for reliable performance. 25 uA is 92 nA. Maximum supply voltage of 5 V Minimum supply voltage is 2.7 V Max on-resistance of 7.5 Ohms 3.5 Ohms Maximum off time: 20 ns 15 ns 2 Switch switch functionality Maximum on-time: 60 ns 40 ns The 100 mA

TS3USBA225RUTR Image

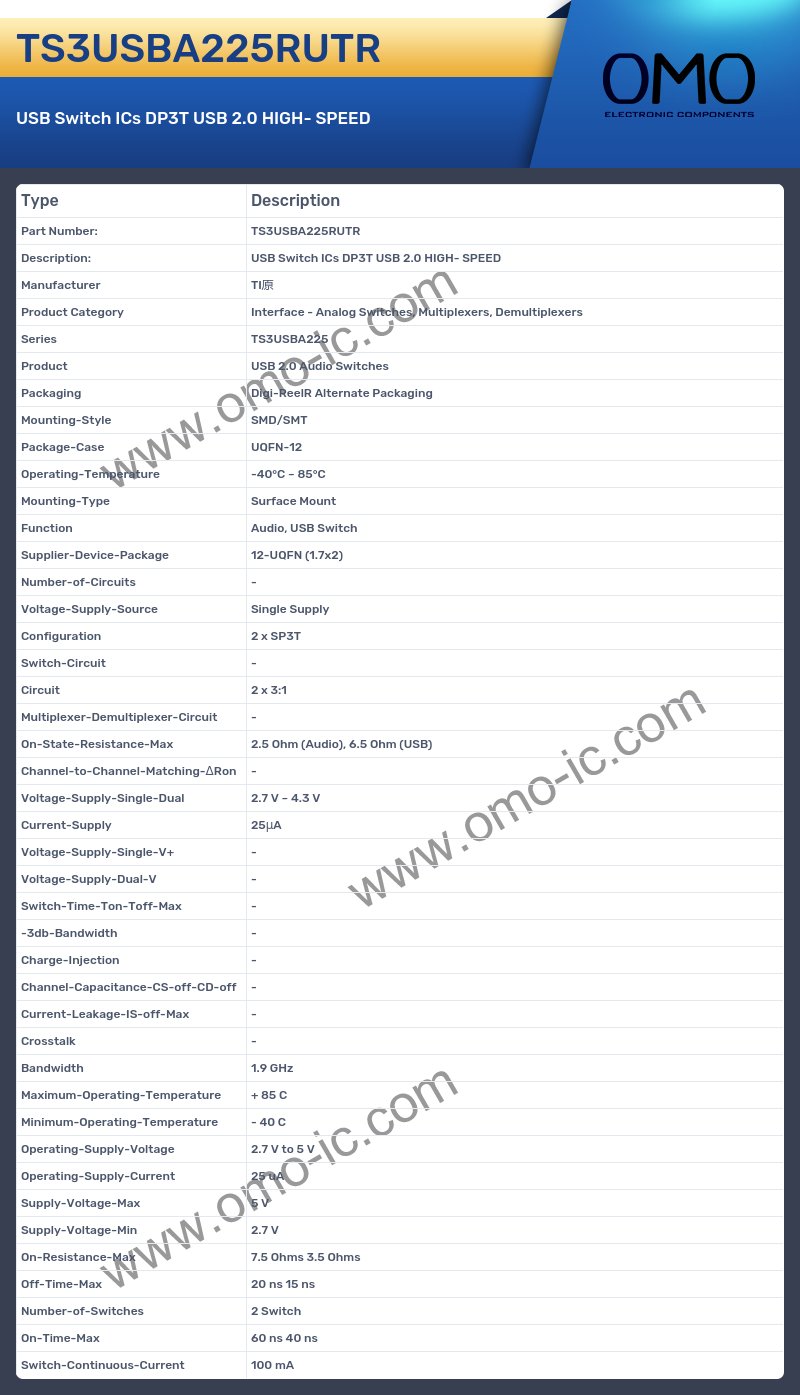

TS3USBA225RUTR Specifications

• Manufacturer TI原
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series TS3USBA225
• Product USB 2.0 Audio Switches
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case UQFN-12
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Audio, USB Switch
• Supplier-Device-Package 12-UQFN (1.7x2)
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 2 x SP3T
• Switch-Circuit -
• Circuit 2 x 3:1
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 2.5 Ohm (Audio), 6.5 Ohm (USB)
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 2.7 V ~ 4.3 V
• Current-Supply 25μA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 1.9 GHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5 V
• Operating-Supply-Current 25 uA
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 2.7 V
• On-Resistance-Max 7.5 Ohms 3.5 Ohms
• Off-Time-Max 20 ns 15 ns
• Number-of-Switches 2 Switch
• On-Time-Max 60 ns 40 ns
• Switch-Continuous-Current 100 mA
