TS3022IDT

TS3022IDT Overview

Product belongs to the TS3022 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Push-Pull Number of channels: 2 Channel Supplier device package: 8-SO Voltage supply range: 1.8 V ~ 5 V 2 element 90μA maximum quiescent current. Maximum propagation delay: 105ns Hysteresis value of - 40 ns response time Power-off control: No Shutdown Power-off control: 1000 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 135 uA is 92 nA. Maximum supply voltage of 5 V Minimum supply voltage is 1.8 V Input bias current of 160 nA The 8 mV. 33 ns is 23 microseconds.

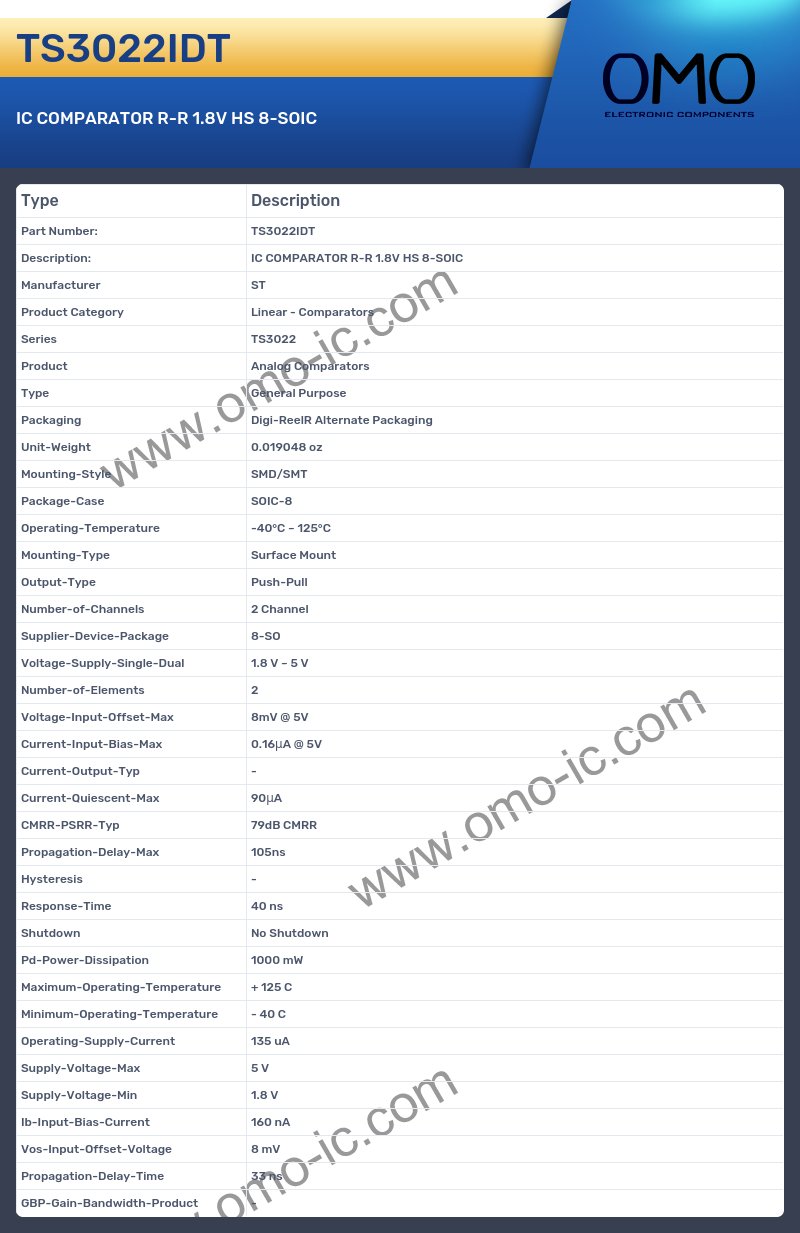

TS3022IDT Image

TS3022IDT Specifications

• Manufacturer ST
• Product Category Linear - Comparators
• Series TS3022
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SO
• Voltage-Supply-Single-Dual 1.8 V ~ 5 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 8mV @ 5V
• Current-Input-Bias-Max 0.16μA @ 5V
• Current-Output-Typ -
• Current-Quiescent-Max 90μA
• CMRR-PSRR-Typ 79dB CMRR
• Propagation-Delay-Max 105ns
• Hysteresis -
• Response-Time 40 ns
• Shutdown No Shutdown
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 135 uA
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 1.8 V
• Ib-Input-Bias-Current 160 nA
• Vos-Input-Offset-Voltage 8 mV
• Propagation-Delay-Time 33 ns
• GBP-Gain-Bandwidth-Product -
