TPS78001DRVR

TPS78001DRVR Overview

Product belongs to the TPS78001 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style WSON-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 6-SON (2x2) 2.2 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.22 V ~ 5.25 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 1.54 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.22 V to 5.25 V Maximum Input Voltage: 5.5 V Output current: 150 mA The product's + 2.2 V is 5.1 V. Load regulation is 2 %. The voltage regulation accuracy of this product is 2 %. Reference voltage is 1.216 V . The 0.2 V at 150 mA. The maximum 250 mV is 360 mV. This product's 1 % is 0.01 %/V.

TPS78001DRVR Image

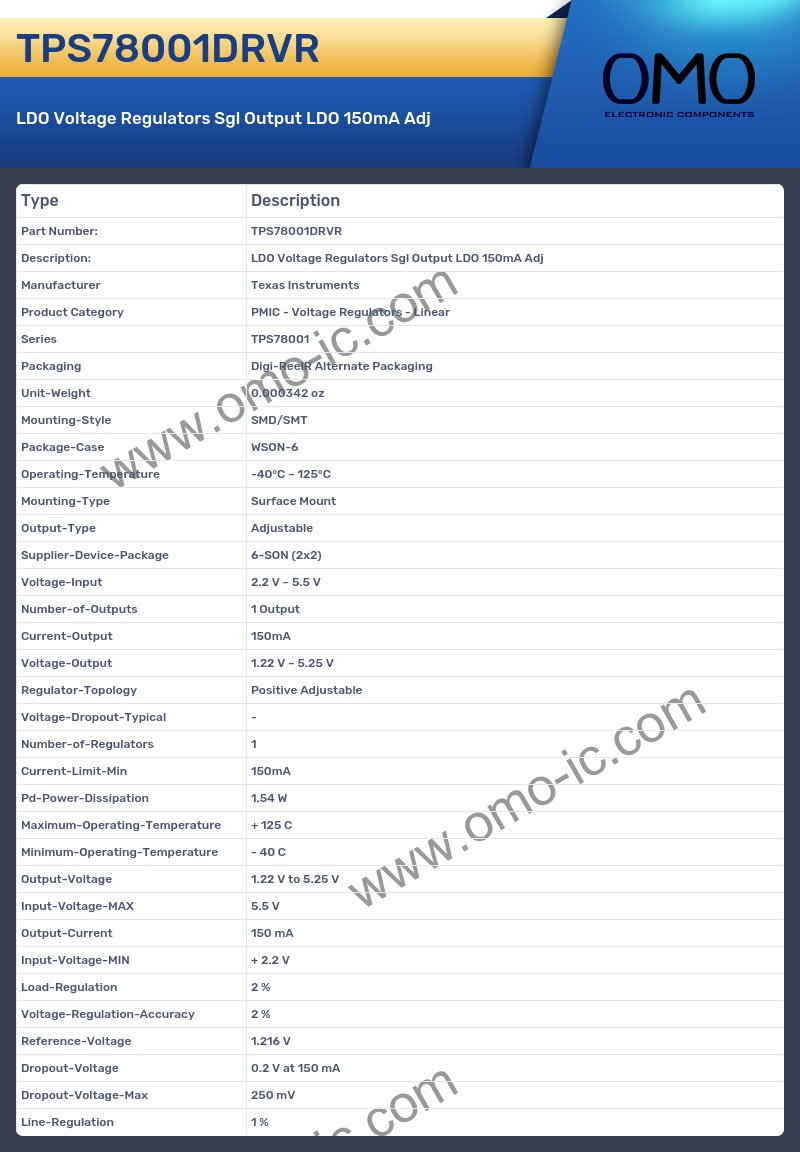

TPS78001DRVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS78001
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 6-SON (2x2)
• Voltage-Input 2.2 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 1.22 V ~ 5.25 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min 150mA
• Pd-Power-Dissipation 1.54 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.22 V to 5.25 V
• Input-Voltage-MAX 5.5 V
• Output-Current 150 mA
• Input-Voltage-MIN + 2.2 V
• Load-Regulation 2 %
• Voltage-Regulation-Accuracy 2 %
• Reference-Voltage 1.216 V
• Dropout-Voltage 0.2 V at 150 mA
• Dropout-Voltage-Max 250 mV
• Line-Regulation 1 %
