TPS76801MPWPREP

TPS76801MPWPREP Overview

Product belongs to the TPS76801-EP series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002885 oz SMD/SMT Mounting-Style HTSSOP-20 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 20-HTSSOP 2.7 V ~ 10 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2 V ~ 5.5 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 7200 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output voltage: Adj Maximum Input Voltage: 10 V Output current: 1 A The product's 2.7 V is 5.1 V. Load regulation is 3 mV. The voltage regulation accuracy of this product is +/- 2 %. This product is also known as V62/03632-10XE and can be referred to by either part number. Reference voltage is 1.1834 V . This product's 0.01 %/V is 0.01 %/V. This product has an 1.2 V to 5.5 V of 2.7 V to 5.5 V.

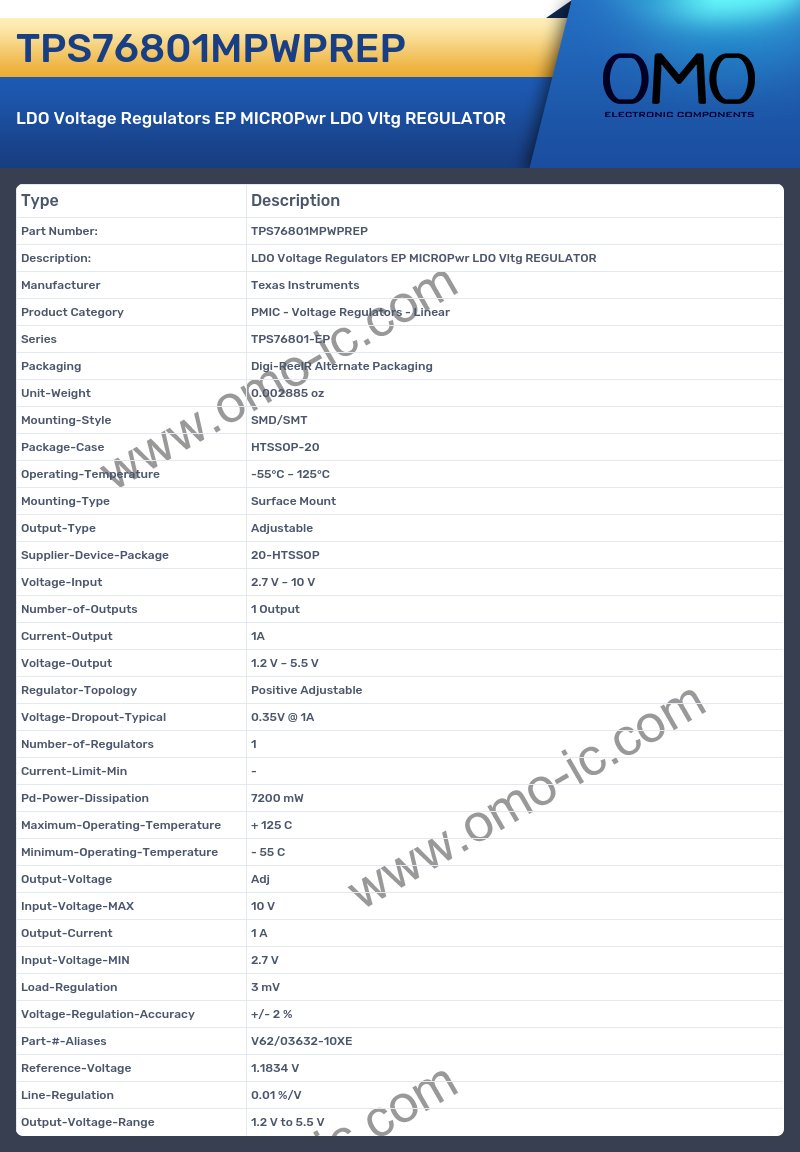

TPS76801MPWPREP Image

TPS76801MPWPREP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS76801-EP
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002885 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-20
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 20-HTSSOP
• Voltage-Input 2.7 V ~ 10 V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 1.2 V ~ 5.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.35V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 7200 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage Adj
• Input-Voltage-MAX 10 V
• Output-Current 1 A
• Input-Voltage-MIN 2.7 V
• Load-Regulation 3 mV
• Voltage-Regulation-Accuracy +/- 2 %
• Part-#-Aliases V62/03632-10XE
• Reference-Voltage 1.1834 V
• Line-Regulation 0.01 %/V
• Output-Voltage-Range 1.2 V to 5.5 V
