TPS72015YZUT

TPS72015YZUT Overview

Product belongs to the TPS72015 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000056 oz SMD/SMT Mounting-Style DSBGA-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 5-DSBGA (1x1.37) Up to 4.5V voltage input Number-of-Outputs: 1 Output Output voltage: 1.5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.403 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.5 V Maximum Input Voltage: 4.5 V Output current: 350 mA The product's + 1.1 V is 5.1 V. Load regulation is - 15 uV / mA. The voltage regulation accuracy of this product is 2 %. The TPS72015EVM-307. Input bias current of 38 uA The 0.11 V at 350 mA. The maximum 200 mV at 350 mA is 360 mV. This product's 16 uV / V is 0.01 %/V.

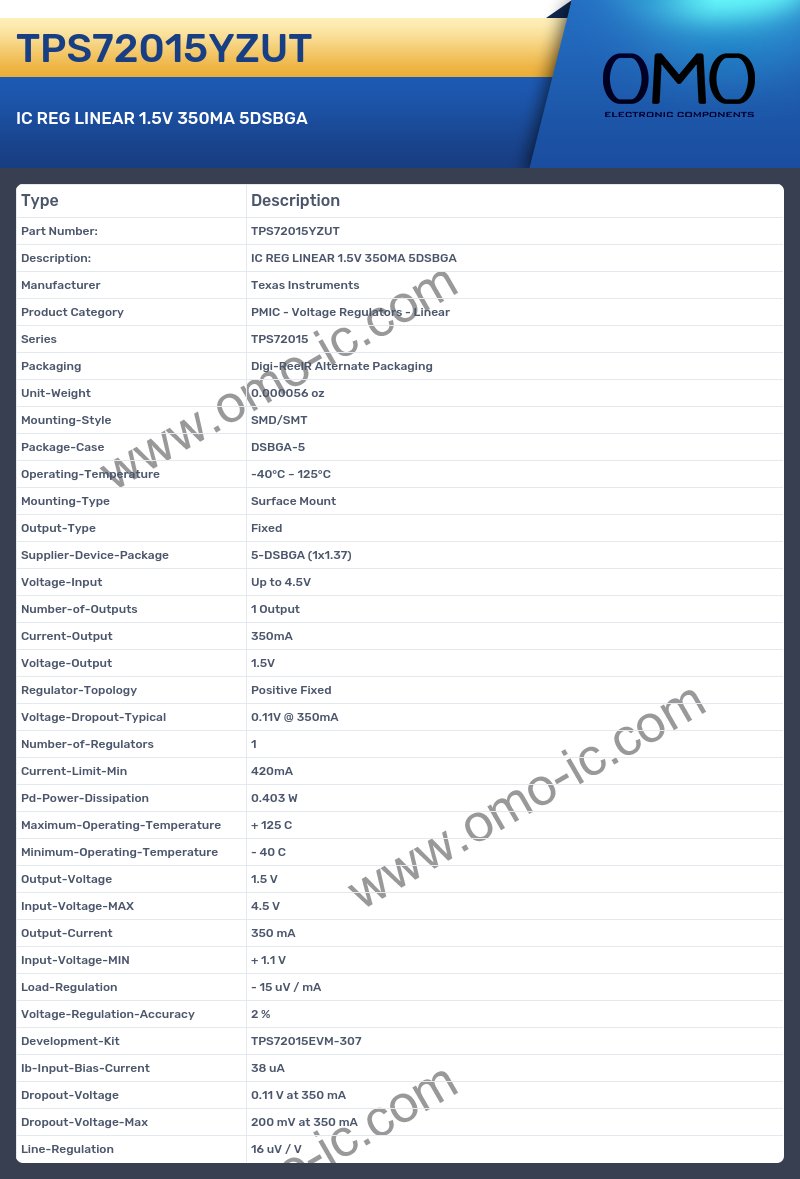

TPS72015YZUT Image

TPS72015YZUT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS72015
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000056 oz
• Mounting-Style SMD/SMT
• Package-Case DSBGA-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 5-DSBGA (1x1.37)
• Voltage-Input Up to 4.5V
• Number-of-Outputs 1 Output
• Current-Output 350mA
• Voltage-Output 1.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.11V @ 350mA
• Number-of-Regulators 1
• Current-Limit-Min 420mA
• Pd-Power-Dissipation 0.403 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.5 V
• Input-Voltage-MAX 4.5 V
• Output-Current 350 mA
• Input-Voltage-MIN + 1.1 V
• Load-Regulation - 15 uV / mA
• Voltage-Regulation-Accuracy 2 %
• Development-Kit TPS72015EVM-307
• Ib-Input-Bias-Current 38 uA
• Dropout-Voltage 0.11 V at 350 mA
• Dropout-Voltage-Max 200 mV at 350 mA
• Line-Regulation 16 uV / V
