TPS61236RWLT

TPS61236RWLT Overview

Product belongs to the TPS61236 series. Type: Synchronous Boost Converter Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications VQFN-9 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Up. Supplier device package: 9-WQFN (2.5x2.5) Number-of-Outputs: 1 Topology: Boost feedback This product features 'Frequency-Switching' at 1MHz for optimal performance. The Positive. Minimum fixed output voltage is 2.9V . The value of Yes is included as a product attribute. The minimum input voltage is 2.3V. The 4.9V. Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 2.9 V to 5.5 V 5 uA is 92 nA. Input Voltage Range: 2.3 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 8 A Switching frequency is 1 MHz The product's 2.3 V is 5.1 V. Load regulation is 0.06 %/A. Minimum supply voltage is 2.3 V

TPS61236RWLT Image

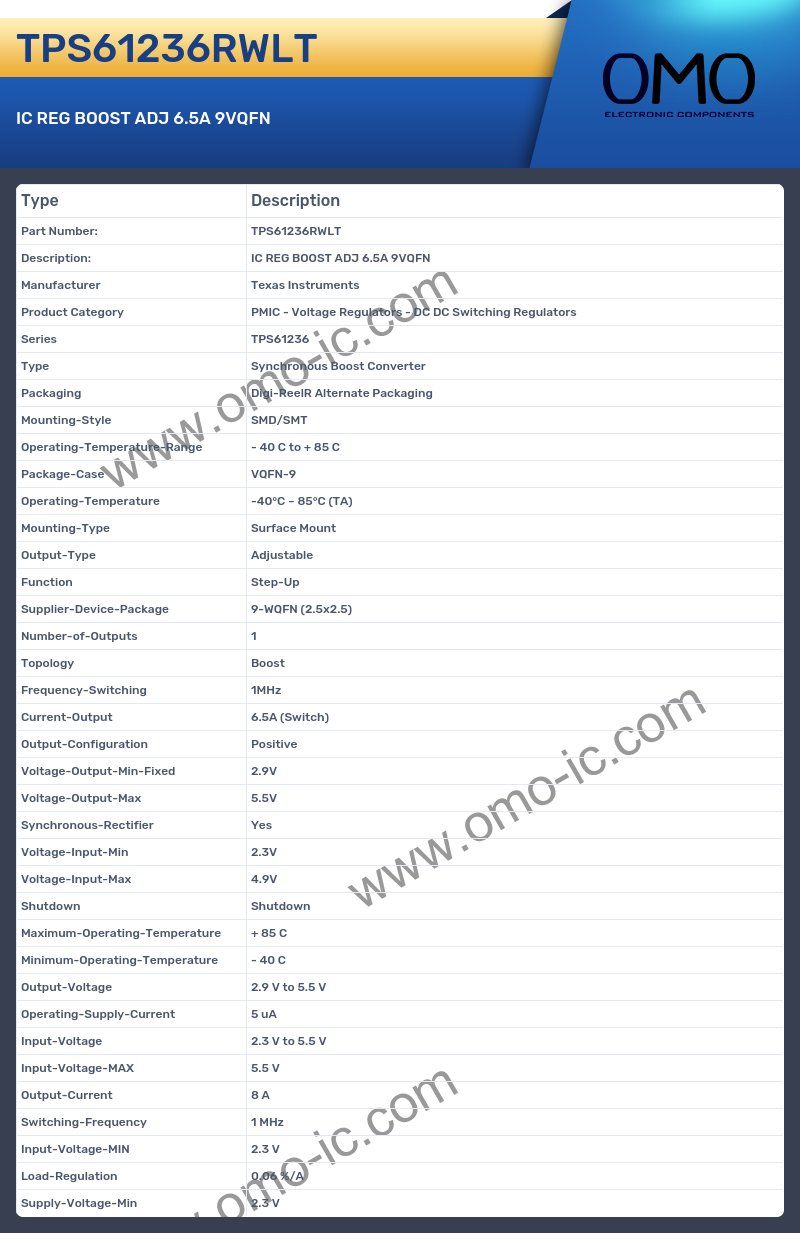

TPS61236RWLT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS61236
• Type Synchronous Boost Converter
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case VQFN-9
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Up
• Supplier-Device-Package 9-WQFN (2.5x2.5)
• Number-of-Outputs 1
• Topology Boost
• Frequency-Switching 1MHz
• Current-Output 6.5A (Switch)
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 2.9V
• Voltage-Output-Max 5.5V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 2.3V
• Voltage-Input-Max 4.9V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.9 V to 5.5 V
• Operating-Supply-Current 5 uA
• Input-Voltage 2.3 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 8 A
• Switching-Frequency 1 MHz
• Input-Voltage-MIN 2.3 V
• Load-Regulation 0.06 %/A
• Supply-Voltage-Min 2.3 V
