TPS61160DRVR

TPS61160DRVR Overview

Product belongs to the TPS61160 series. Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style WSON-6 This product's 600kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Current Mode Versatile Backlight applications for maximum usability Supplier device package: 6-SON (2x2) Number-of-Outputs: 1 Current-Output-Channel is 700mA (Switch) This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 18V. The minimum 2.7V required for voltage supply. Output voltage: 26V Dimming control is done through PWM communication. Power-off control: 1540 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The operating frequency is 600 kHz. Input Voltage Range: 2.7 V to 18 V Output current: 700 mA Maximum supply current: 1.8 mA High-Level-Output-Current of 100 uA 100 uA low-level output current

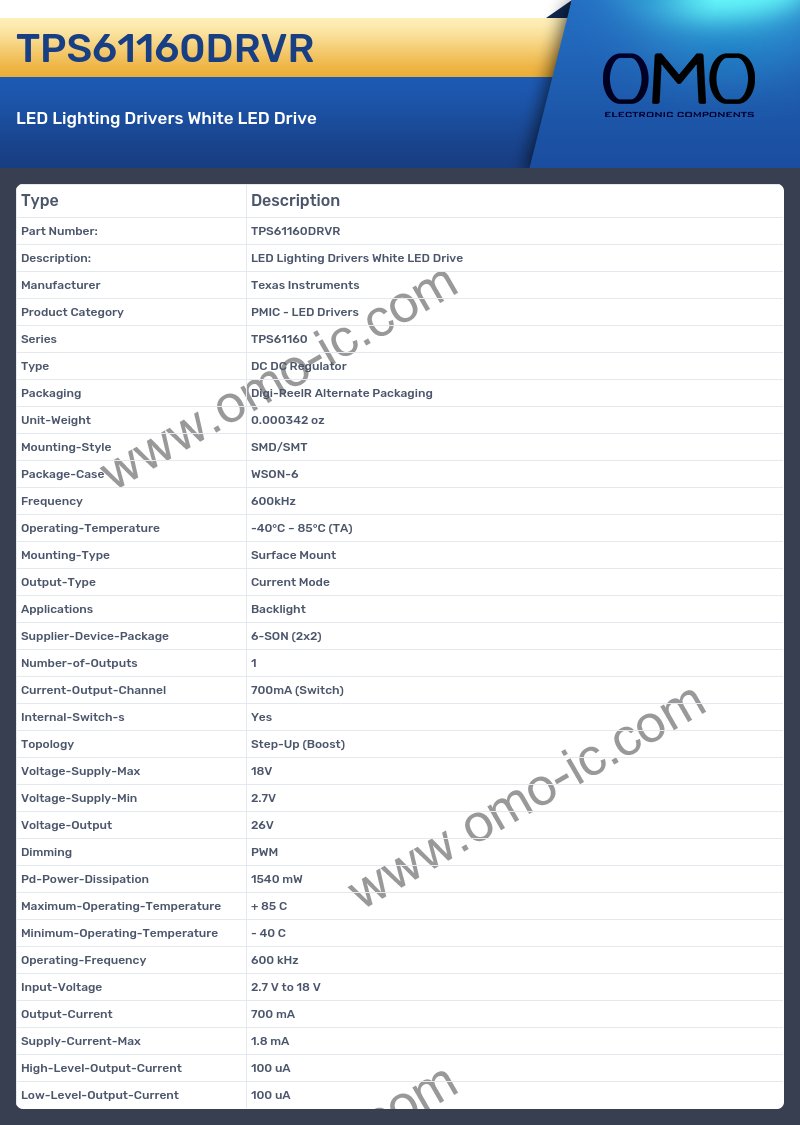

TPS61160DRVR Image

TPS61160DRVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TPS61160
• Type DC DC Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-6
• Frequency 600kHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Current Mode
• Applications Backlight
• Supplier-Device-Package 6-SON (2x2)
• Number-of-Outputs 1
• Current-Output-Channel 700mA (Switch)
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 18V
• Voltage-Supply-Min 2.7V
• Voltage-Output 26V
• Dimming PWM
• Pd-Power-Dissipation 1540 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 600 kHz
• Input-Voltage 2.7 V to 18 V
• Output-Current 700 mA
• Supply-Current-Max 1.8 mA
• High-Level-Output-Current 100 uA
• Low-Level-Output-Current 100 uA
