TPS61130RSAR

TPS61130RSAR Overview

Product belongs to the TPS61130 series. Type: DC/DC Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001464 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications VQFN-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Any Function. Voltage Supply Range: 1.8 V ~ 5.5 V Supplier device package: 16-QFN (4x4) Number-of-Outputs: 2 Topology: Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (1) feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The 2.5 V ~ 5.5 V, 300mA for this product is -, with a maximum current of 2.7A. This product's 2.5 V ~ 5.5 V, 320mA feature offers a maximum output of -, 1.8A. The - for this product is unspecified, but it can deliver up to 1.8A of current. No LED driver is present in the product. This product's No. No for w-Sequencer Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 0.9 V to 5.5 V Input Voltage Range: 1.8 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 320 mA Switching frequency is 500 kHz The product's 1.8 V is 5.1 V. The TPS61130EVM-206.

TPS61130RSAR Image

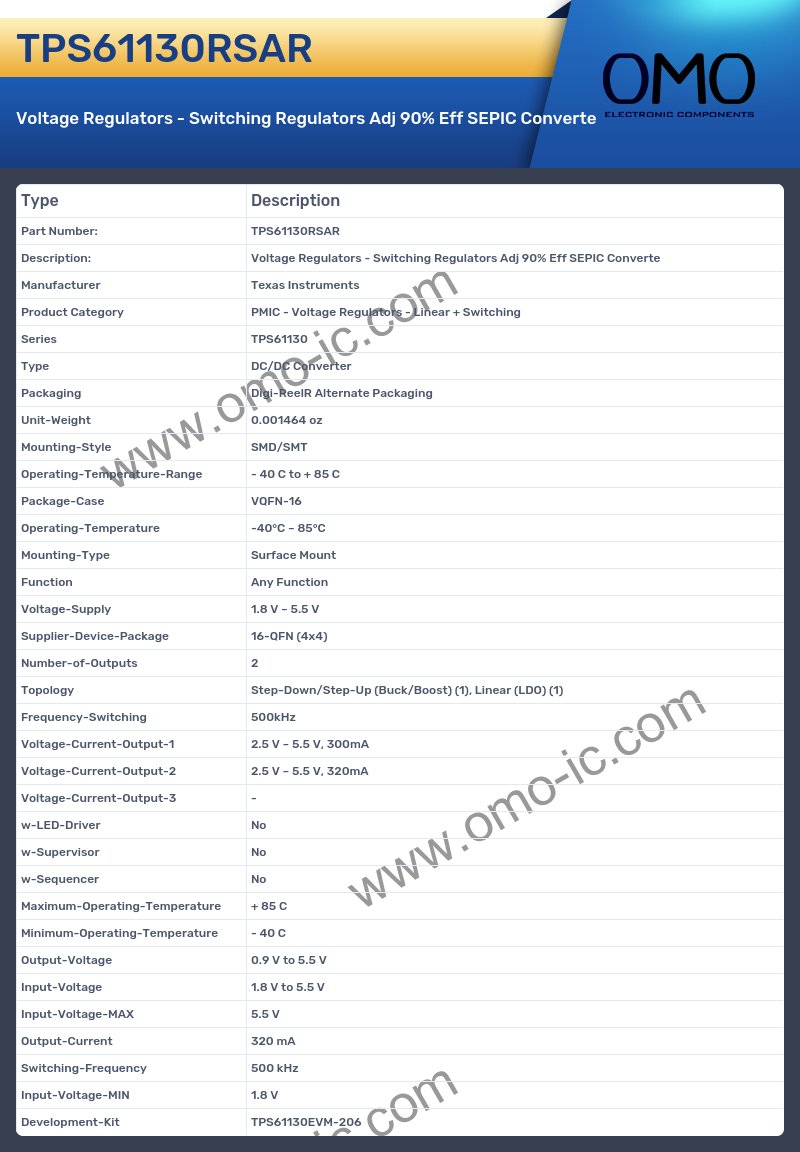

TPS61130RSAR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear + Switching
• Series TPS61130
• Type DC/DC Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001464 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case VQFN-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Any Function
• Voltage-Supply 1.8 V ~ 5.5 V
• Supplier-Device-Package 16-QFN (4x4)
• Number-of-Outputs 2
• Topology Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (1)
• Frequency-Switching 500kHz
• Voltage-Current-Output-1 2.5 V ~ 5.5 V, 300mA
• Voltage-Current-Output-2 2.5 V ~ 5.5 V, 320mA
• Voltage-Current-Output-3 -
• w-LED-Driver No
• w-Supervisor No
• w-Sequencer No
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.9 V to 5.5 V
• Input-Voltage 1.8 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 320 mA
• Switching-Frequency 500 kHz
• Input-Voltage-MIN 1.8 V
• Development-Kit TPS61130EVM-206
