TPS61103RGERG4

TPS61103RGERG4 Overview

Product belongs to the TPS61103 series. Type: DC/DC Converter Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.001524 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications VQFN-24 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Any Function. Voltage Supply Range: 0.8 V ~ 3.3 V Supplier device package: 24-VQFN (4x4) Number-of-Outputs: 2 Topology: Step-Up (Boost) Synchronous (1), Linear (LDO) (1) feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The 3.3V, 1.8A for this product is -, with a maximum current of 2.7A. This product's 0.9 V ~ 3.6 V, 500mA feature offers a maximum output of -, 1.8A. The - for this product is unspecified, but it can deliver up to 1.8A of current. No LED driver is present in the product. This product's No. No for w-Sequencer Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 3.3 V 0.9 V to 3.6 V Input Voltage Range: 0.8 V to 3.3 V Maximum Input Voltage: 3.3 V Output current: 270 mA Switching frequency is 500 kHz The product's 0.8 V is 5.1 V. The TPS61103EVM-216.

TPS61103RGERG4 Image

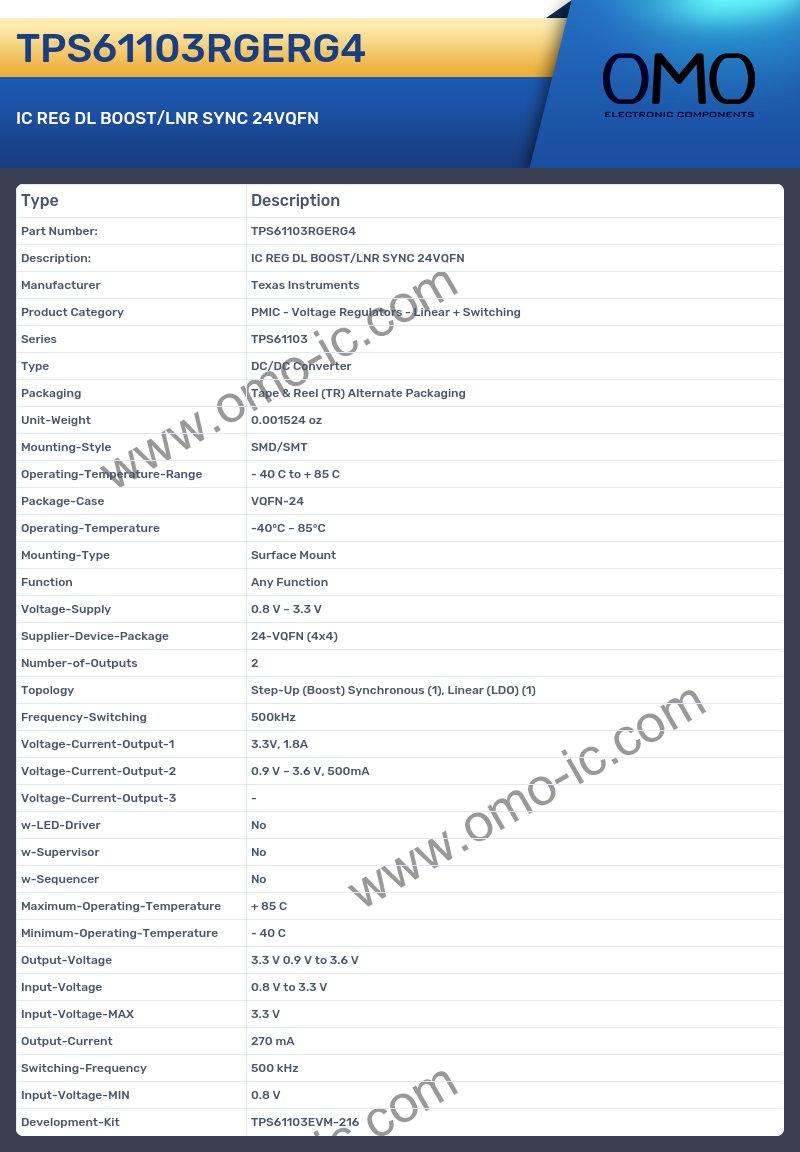

TPS61103RGERG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear + Switching
• Series TPS61103
• Type DC/DC Converter
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.001524 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case VQFN-24
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Any Function
• Voltage-Supply 0.8 V ~ 3.3 V
• Supplier-Device-Package 24-VQFN (4x4)
• Number-of-Outputs 2
• Topology Step-Up (Boost) Synchronous (1), Linear (LDO) (1)
• Frequency-Switching 500kHz
• Voltage-Current-Output-1 3.3V, 1.8A
• Voltage-Current-Output-2 0.9 V ~ 3.6 V, 500mA
• Voltage-Current-Output-3 -
• w-LED-Driver No
• w-Supervisor No
• w-Sequencer No
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V 0.9 V to 3.6 V
• Input-Voltage 0.8 V to 3.3 V
• Input-Voltage-MAX 3.3 V
• Output-Current 270 mA
• Switching-Frequency 500 kHz
• Input-Voltage-MIN 0.8 V
• Development-Kit TPS61103EVM-216
