TPS61100PW

TPS61100PW Overview

Product belongs to the TPS61100 series. Type: DC/DC Converter Tube Alternate Packaging is the packaging method for this product Weight of 0.002758 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications TSSOP-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Any Function. Voltage Supply Range: 0.8 V ~ 3.3 V Supplier device package: 20-TSSOP Number-of-Outputs: 2 Topology: Step-Up (Boost) Synchronous (1), Linear (LDO) (1) feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The 1.5 V ~ 5.5 V, 1.8A for this product is -, with a maximum current of 2.7A. This product's 0.9 V ~ 3.6 V, 500mA feature offers a maximum output of -, 1.8A. The - for this product is unspecified, but it can deliver up to 1.8A of current. No LED driver is present in the product. This product's No. No for w-Sequencer Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 1.5 V to 5.5 V 0.9 V to 3.6 V Input Voltage Range: 0.8 V to 3.3 V Maximum Input Voltage: 3.3 V Output current: 270 mA Switching frequency is 500 kHz The product's 0.8 V is 5.1 V. Load regulation is 0.6 %. The TPS61100EVM-216.

TPS61100PW Image

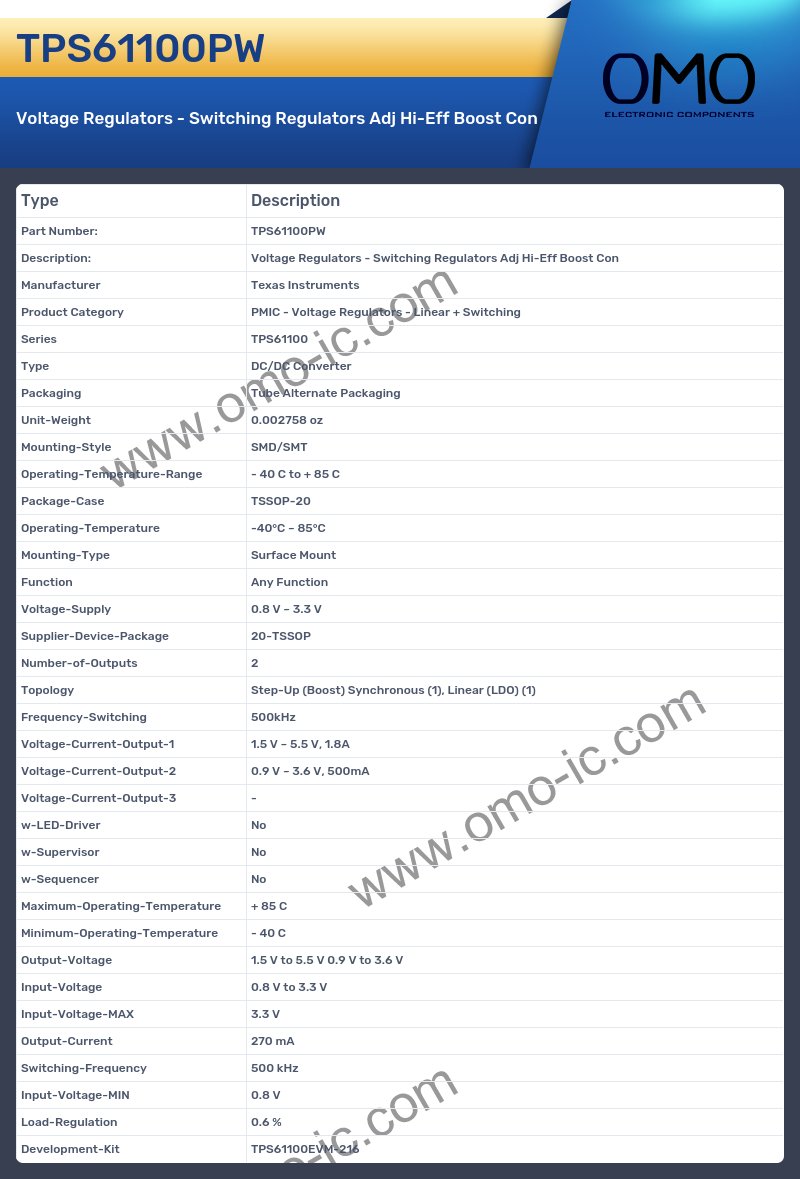

TPS61100PW Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear + Switching
• Series TPS61100
• Type DC/DC Converter
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002758 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case TSSOP-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Any Function
• Voltage-Supply 0.8 V ~ 3.3 V
• Supplier-Device-Package 20-TSSOP
• Number-of-Outputs 2
• Topology Step-Up (Boost) Synchronous (1), Linear (LDO) (1)
• Frequency-Switching 500kHz
• Voltage-Current-Output-1 1.5 V ~ 5.5 V, 1.8A
• Voltage-Current-Output-2 0.9 V ~ 3.6 V, 500mA
• Voltage-Current-Output-3 -
• w-LED-Driver No
• w-Supervisor No
• w-Sequencer No
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.5 V to 5.5 V 0.9 V to 3.6 V
• Input-Voltage 0.8 V to 3.3 V
• Input-Voltage-MAX 3.3 V
• Output-Current 270 mA
• Switching-Frequency 500 kHz
• Input-Voltage-MIN 0.8 V
• Load-Regulation 0.6 %
• Development-Kit TPS61100EVM-216
