TPS61040DBVR

TPS61040DBVR Overview

Product belongs to the TPS61040 series. Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000459 oz SMD/SMT Mounting-Style The 1.6 mm is at most 7.6 mm. SOT-23-5 This product's 1MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Current Mode Versatile Backlight applications for maximum usability Supplier device package: SOT-23-5 Number-of-Outputs: 1 Current-Output-Channel is 350mA (Switch) This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 6V. The minimum 1.8V required for voltage supply. Output voltage: 28V Dimming control is done through PWM communication. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The operating frequency is 1 MHz. Input Voltage Range: 1.8 V to 6 V Output current: 400 mA Maximum supply current: 50 uA High-Level-Output-Current of 0.09 A

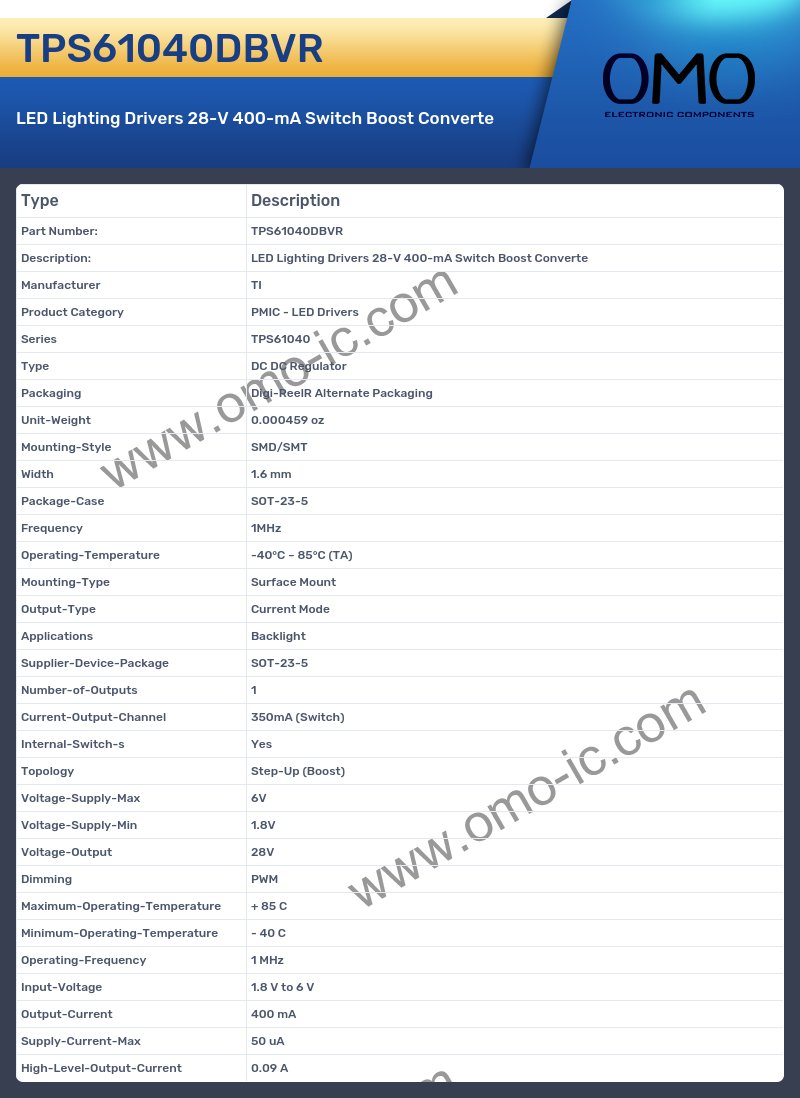

TPS61040DBVR Image

TPS61040DBVR Specifications

• Manufacturer TI
• Product Category PMIC - LED Drivers
• Series TPS61040
• Type DC DC Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000459 oz
• Mounting-Style SMD/SMT
• Width 1.6 mm
• Package-Case SOT-23-5
• Frequency 1MHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Current Mode
• Applications Backlight
• Supplier-Device-Package SOT-23-5
• Number-of-Outputs 1
• Current-Output-Channel 350mA (Switch)
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 6V
• Voltage-Supply-Min 1.8V
• Voltage-Output 28V
• Dimming PWM
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 1 MHz
• Input-Voltage 1.8 V to 6 V
• Output-Current 400 mA
• Supply-Current-Max 50 uA
• High-Level-Output-Current 0.09 A
