TPS60313DGS

TPS60313DGS Overview

Product belongs to the TPS60313 series. Type: Charge Pump (Inductorless) Tube Alternate Packaging is the packaging method for this product Weight of 0.000663 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications VSSOP-10 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Fixed Product function is Ratiometric, Step-Up. Supplier device package: 10-VSSOP Number-of-Outputs: 2 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 700kHz for optimal performance. The Positive. Minimum fixed output voltage is 2Vin, 3V . The value of No is included as a product attribute. The minimum input voltage is 0.9V. The 1.8V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3 V Input Voltage Range: 0.9 V to 1.8 V Maximum Input Voltage: 1.8 V Output current: 20 mA 40 mA Switching frequency is 700 kHz The product's 0.9 V is 5.1 V.

TPS60313DGS Image

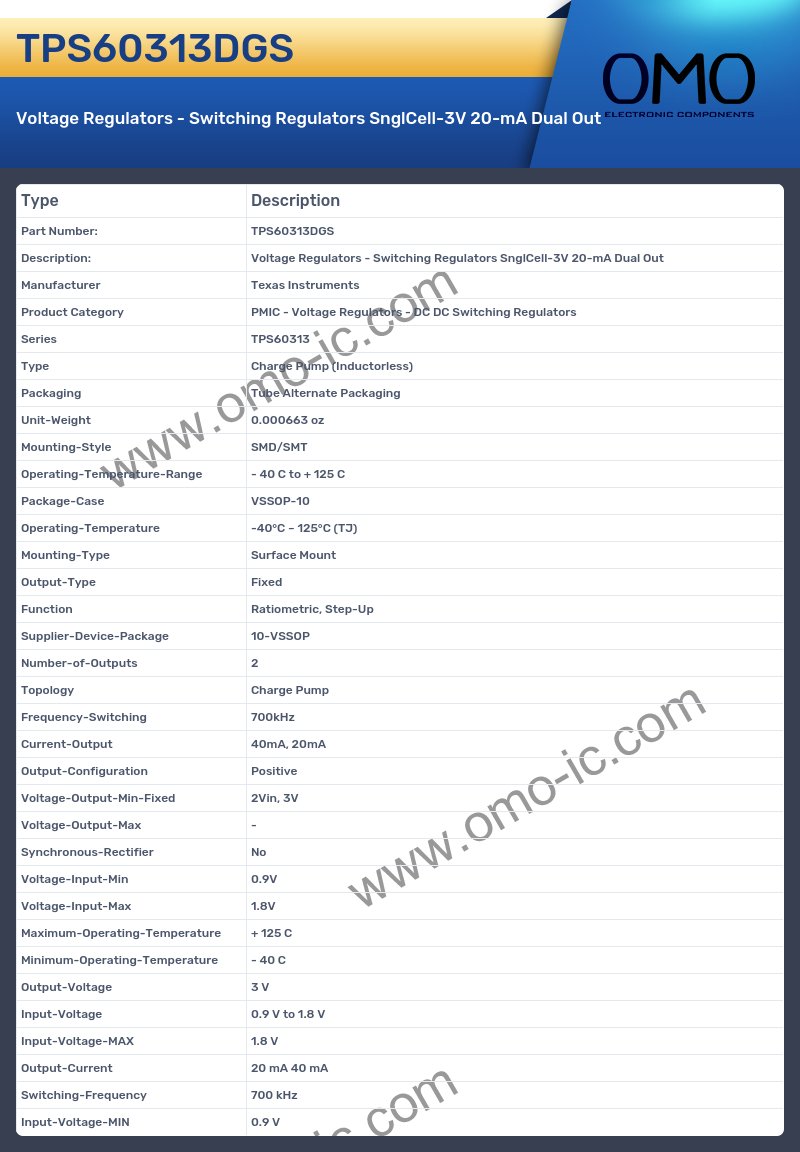

TPS60313DGS Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS60313
• Type Charge Pump (Inductorless)
• Packaging Tube Alternate Packaging
• Unit-Weight 0.000663 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case VSSOP-10
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Ratiometric, Step-Up
• Supplier-Device-Package 10-VSSOP
• Number-of-Outputs 2
• Topology Charge Pump
• Frequency-Switching 700kHz
• Current-Output 40mA, 20mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 2Vin, 3V
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 0.9V
• Voltage-Input-Max 1.8V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3 V
• Input-Voltage 0.9 V to 1.8 V
• Input-Voltage-MAX 1.8 V
• Output-Current 20 mA 40 mA
• Switching-Frequency 700 kHz
• Input-Voltage-MIN 0.9 V
