TPS60302DGSR

TPS60302DGSR Overview

Product belongs to the TPS60302 series. Type: Charge Pump (Inductorless) Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000663 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications VSSOP-10 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Fixed Product function is Ratiometric, Step-Up. Supplier device package: 10-VSSOP Number-of-Outputs: 2 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 700kHz for optimal performance. The Positive. Minimum fixed output voltage is 2Vin, 3.3V . The value of No is included as a product attribute. The minimum input voltage is 0.9V. The 1.8V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Input Voltage Range: 0.9 V to 1.8 V Maximum Input Voltage: 1.8 V Output current: 40 mA Switching frequency is 700 kHz The product's 0.9 V is 5.1 V. The TPS60302EVM-170.

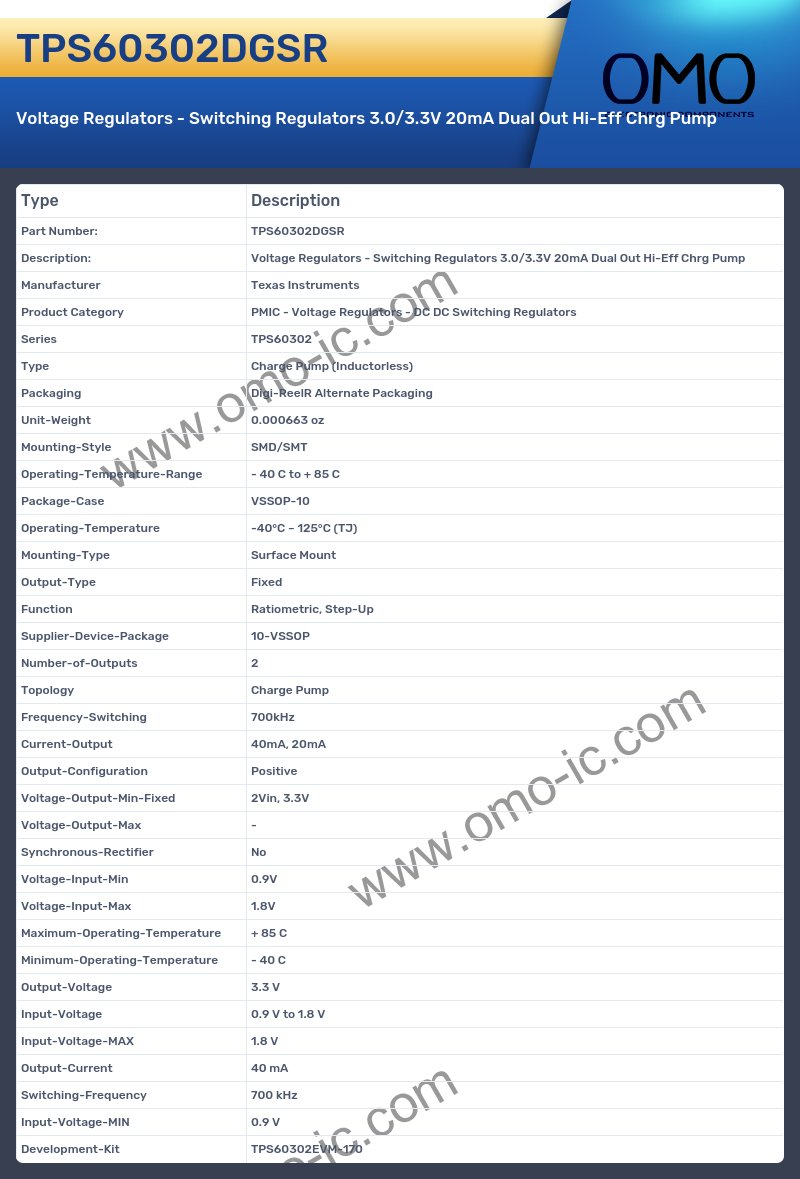

TPS60302DGSR Image

TPS60302DGSR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS60302
• Type Charge Pump (Inductorless)
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000663 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case VSSOP-10
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Ratiometric, Step-Up
• Supplier-Device-Package 10-VSSOP
• Number-of-Outputs 2
• Topology Charge Pump
• Frequency-Switching 700kHz
• Current-Output 40mA, 20mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 2Vin, 3.3V
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 0.9V
• Voltage-Input-Max 1.8V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage 0.9 V to 1.8 V
• Input-Voltage-MAX 1.8 V
• Output-Current 40 mA
• Switching-Frequency 700 kHz
• Input-Voltage-MIN 0.9 V
• Development-Kit TPS60302EVM-170
