TPS60231RGTT

TPS60231RGTT Overview

Product belongs to the TPS60231 series. Type: DC DC Regulator Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.000850 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications VQFN-16 This product's 1MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 16-QFN (3x3) Number-of-Outputs: 3 Current-Output-Channel is 25mA This product has Yes. Topology: Switched Capacitor (Charge Pump) feedback The maximum voltage supply is 6.5V. The minimum 2.7V required for voltage supply. Output voltage: 5.5V Dimming control is done through PWM communication. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 5.5 V Input Voltage Range: 2.7 V to 6.5 V Maximum Input Voltage: 6.5 V Output current: 75 mA Switching frequency is 1 MHz The product's 2.7 V is 5.1 V. The TPS60231EVM-047.

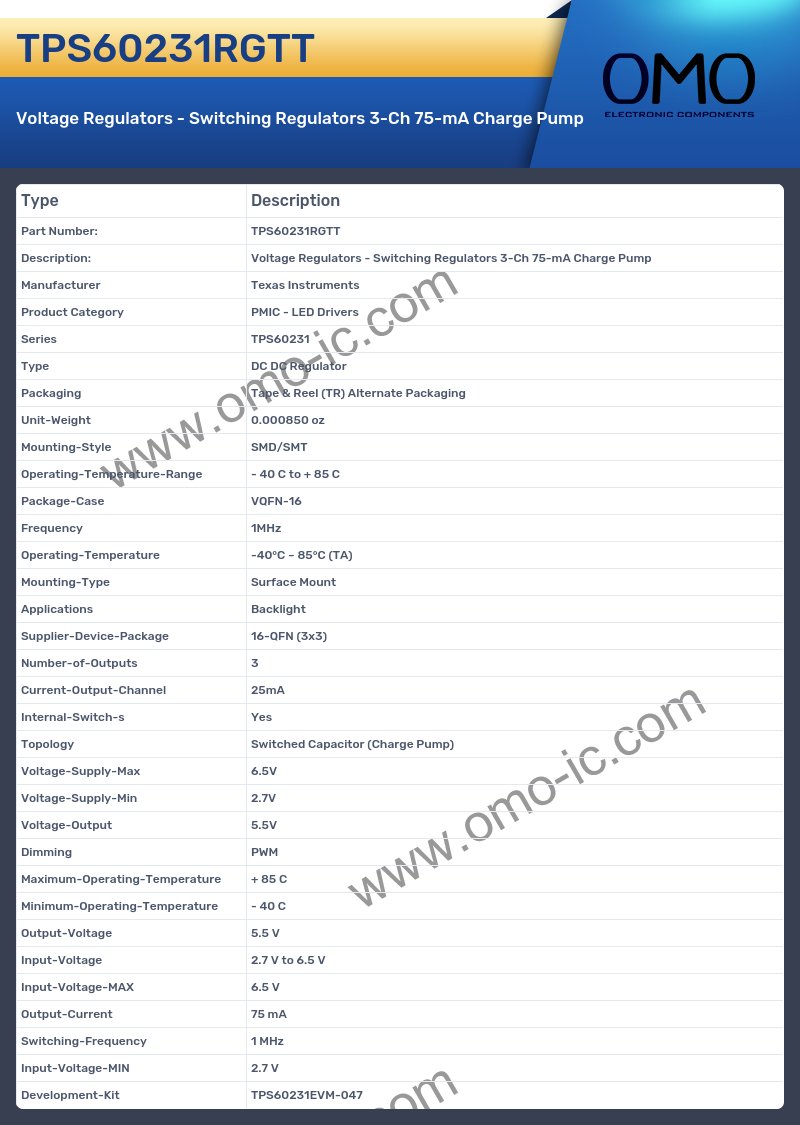

TPS60231RGTT Image

TPS60231RGTT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TPS60231
• Type DC DC Regulator
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.000850 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case VQFN-16
• Frequency 1MHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 16-QFN (3x3)
• Number-of-Outputs 3
• Current-Output-Channel 25mA
• Internal-Switch-s Yes
• Topology Switched Capacitor (Charge Pump)
• Voltage-Supply-Max 6.5V
• Voltage-Supply-Min 2.7V
• Voltage-Output 5.5V
• Dimming PWM
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5.5 V
• Input-Voltage 2.7 V to 6.5 V
• Input-Voltage-MAX 6.5 V
• Output-Current 75 mA
• Switching-Frequency 1 MHz
• Input-Voltage-MIN 2.7 V
• Development-Kit TPS60231EVM-047
