TPS5420MDREP

TPS5420MDREP Overview

Product belongs to the SWIFT series. Type: Voltage Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style Wide - 55 C to + 125 C operating temperature range for diverse applications SOIC-8 Operational temperature range: -55°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The Positive. Minimum fixed output voltage is 1.22V . The value of No is included as a product attribute. The minimum input voltage is 5.5V. The 35V. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output voltage: Adj to 1.22 V Input Voltage Range: 5.5 V to 35 V Maximum Input Voltage: 35 V Output current: 2 A Switching frequency is 500 kHz The product's 5.5 V is 5.1 V. This product is also known as V62/07613-01XE and can be referred to by either part number.

TPS5420MDREP Image

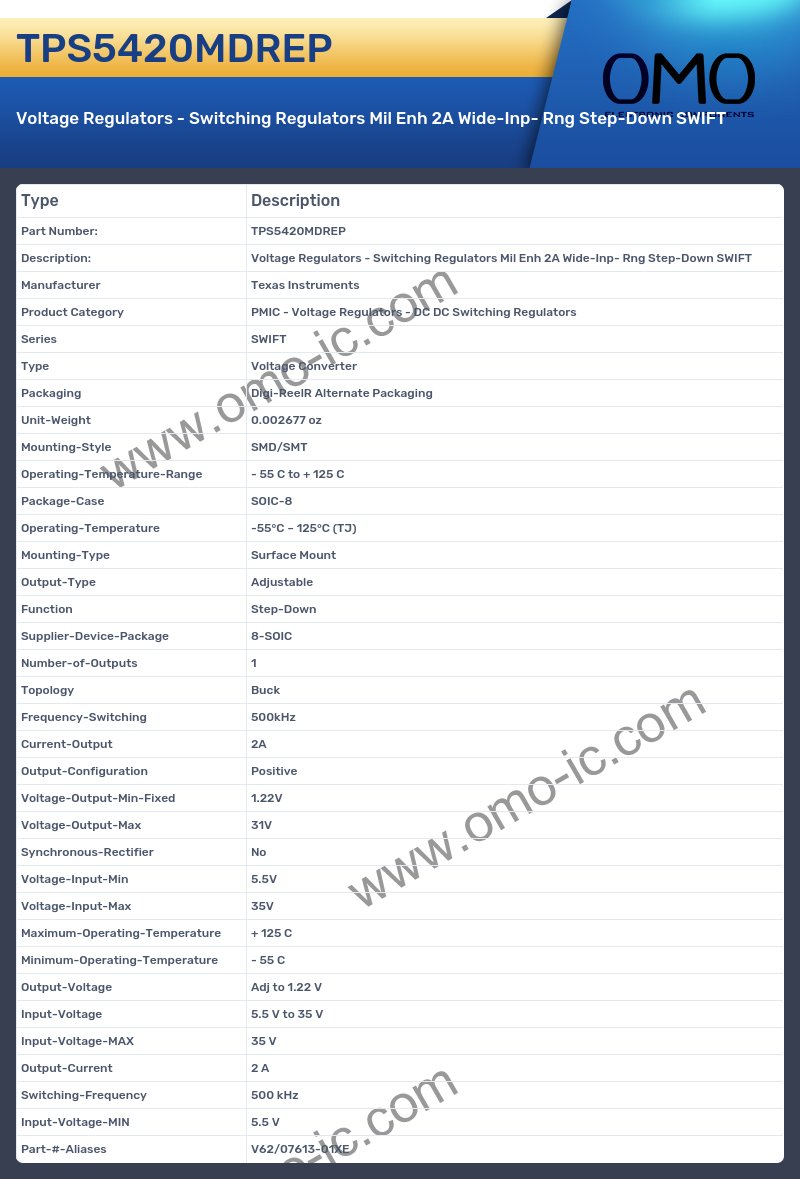

TPS5420MDREP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SWIFT
• Type Voltage Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 55 C to + 125 C
• Package-Case SOIC-8
• Operating-Temperature -55°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 500kHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 1.22V
• Voltage-Output-Max 31V
• Synchronous-Rectifier No
• Voltage-Input-Min 5.5V
• Voltage-Input-Max 35V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage Adj to 1.22 V
• Input-Voltage 5.5 V to 35 V
• Input-Voltage-MAX 35 V
• Output-Current 2 A
• Switching-Frequency 500 kHz
• Input-Voltage-MIN 5.5 V
• Part-#-Aliases V62/07613-01XE
