TPS3820-33DBVT

TPS3820-33DBVT Overview

Product belongs to the TPS3820-33 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000459 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: SOT-23-5 The Push-Pull, Totem Pole. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 15 ms Minimum. This product's 2.93V. Power-off control: 437 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 15 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.1 V This product includes Watchdog This product's 2.93 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 25 ms is 200 ms. The 3 V is 2.35 V. 2.93 V is set to 2.29 V.

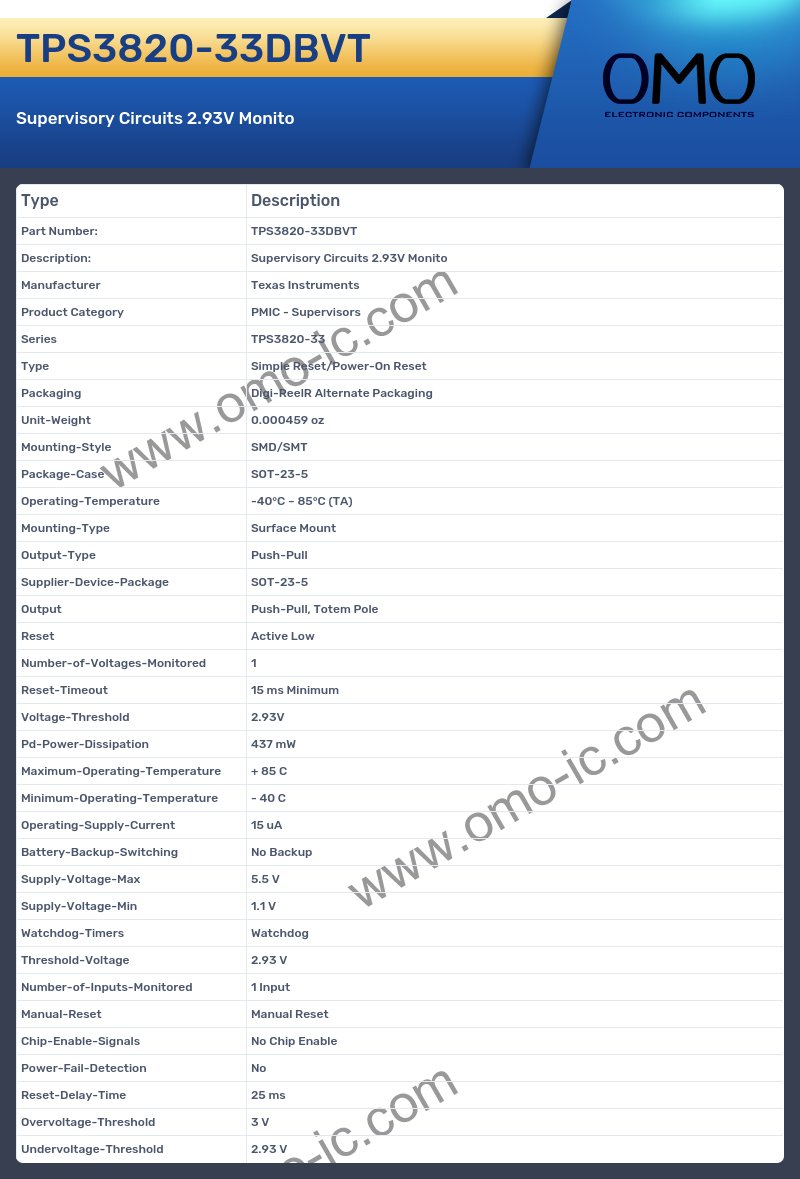

TPS3820-33DBVT Image

TPS3820-33DBVT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3820-33
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000459 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package SOT-23-5
• Output Push-Pull, Totem Pole
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 15 ms Minimum
• Voltage-Threshold 2.93V
• Pd-Power-Dissipation 437 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 15 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.1 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 2.93 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 25 ms
• Overvoltage-Threshold 3 V
• Undervoltage-Threshold 2.93 V
