TPS3802K33DCKR

TPS3802K33DCKR Overview

Product belongs to the TPS3802K33 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000088 oz SMD/SMT Mounting-Style SC-70-5 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: SC-70-5 The Push-Pull, Totem Pole. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 240 ms Minimum. This product's 2.93V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 9 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 4 V Minimum supply voltage is 1.6 V This product includes No Watchdog This product's 1.8 V 2.5 V 2.7 V 3 V 3.3 V 5 V Adjustable is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. The product's 380 ms is 200 ms. The 2.99 V is 2.35 V. 2.93 V is set to 2.29 V.

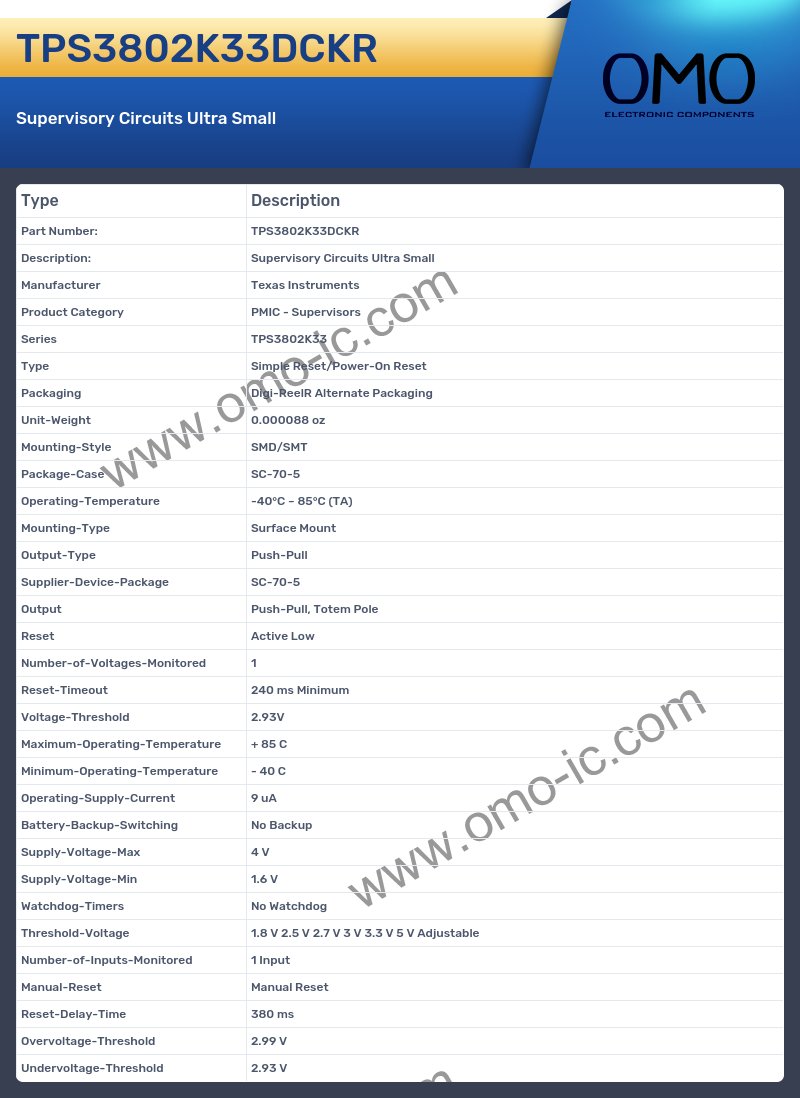

TPS3802K33DCKR Image

TPS3802K33DCKR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3802K33
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000088 oz
• Mounting-Style SMD/SMT
• Package-Case SC-70-5
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package SC-70-5
• Output Push-Pull, Totem Pole
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 240 ms Minimum
• Voltage-Threshold 2.93V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 9 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 4 V
• Supply-Voltage-Min 1.6 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 1.8 V 2.5 V 2.7 V 3 V 3.3 V 5 V Adjustable
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Reset-Delay-Time 380 ms
• Overvoltage-Threshold 2.99 V
• Undervoltage-Threshold 2.93 V
