TPS3513DR

TPS3513DR Overview

Product belongs to the TPS3513 series. Type: Multi-Voltage Supervisor Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Open Collector / Drain Supplier device package: 14-SOIC The Open Drain or Open Collector. This product's Active Low. This product has 3 monitored voltages. The reset timeout for this product is 200 ms Minimum. This product's 3.3V, 5V, 12V. Power-off control: 956 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 1000 uA is 92 nA. Maximum supply voltage of 15 V Minimum supply voltage is 4.5 V This product includes No Watchdog This product's 3.3 V 5 V 12 V is 2.32 V. This product can only 3 Input at a time. This product features a No Manual Reset function that allows for manual reset. The product's 300 ms is 200 ms. The 3.9 V 6.1 V 13.8 V is 2.35 V. 2.2 V 3.5 V 9 V is set to 2.29 V.

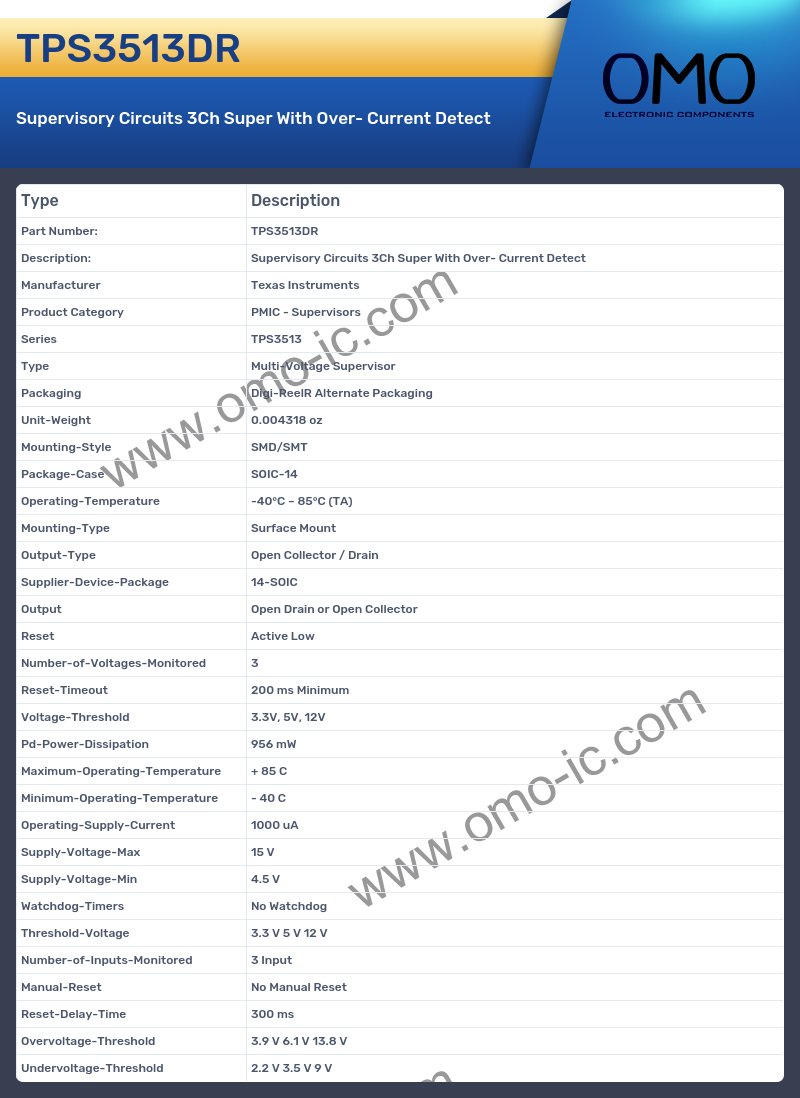

TPS3513DR Image

TPS3513DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3513
• Type Multi-Voltage Supervisor
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Collector / Drain
• Supplier-Device-Package 14-SOIC
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 3
• Reset-Timeout 200 ms Minimum
• Voltage-Threshold 3.3V, 5V, 12V
• Pd-Power-Dissipation 956 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1000 uA
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 4.5 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 3.3 V 5 V 12 V
• Number-of-Inputs-Monitored 3 Input
• Manual-Reset No Manual Reset
• Reset-Delay-Time 300 ms
• Overvoltage-Threshold 3.9 V 6.1 V 13.8 V
• Undervoltage-Threshold 2.2 V 3.5 V 9 V
