TPS3421ECDRYR

TPS3421ECDRYR Overview

Product belongs to the TPS3421EC series. Type: Reset Timer Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style USON-6 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: 6-SON (1.45x1) The Open Drain or Open Collector. This product's Active Low. This product has 2 monitored voltages. The reset timeout for this product is 64 ms Minimum. This product's Adjustable/Selectable. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 250 nA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 6.5 V Minimum supply voltage is 1.6 V This product includes No Watchdog This product can only 2 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support Chip Enable. The product's 150 us is 200 ms.

TPS3421ECDRYR Image

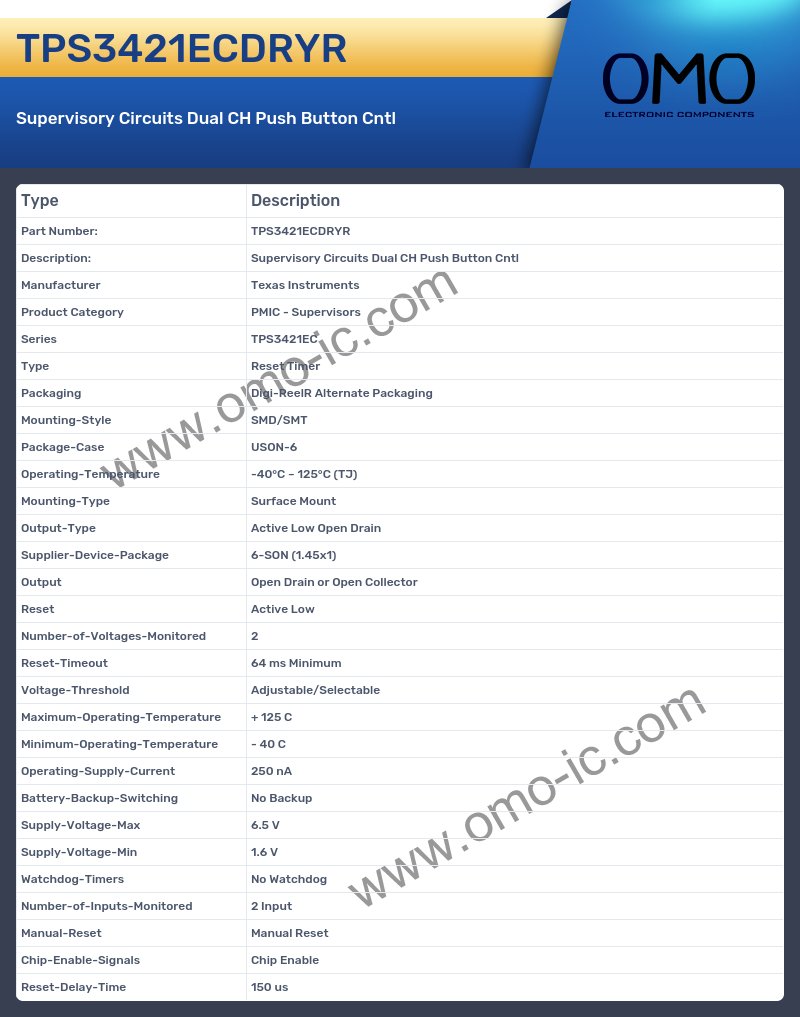

TPS3421ECDRYR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3421EC
• Type Reset Timer
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case USON-6
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package 6-SON (1.45x1)
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 2
• Reset-Timeout 64 ms Minimum
• Voltage-Threshold Adjustable/Selectable
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 250 nA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 6.5 V
• Supply-Voltage-Min 1.6 V
• Watchdog-Timers No Watchdog
• Number-of-Inputs-Monitored 2 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals Chip Enable
• Reset-Delay-Time 150 us
